Railway

Automated production lines for the rail industry.

Solutions Downloads Contact

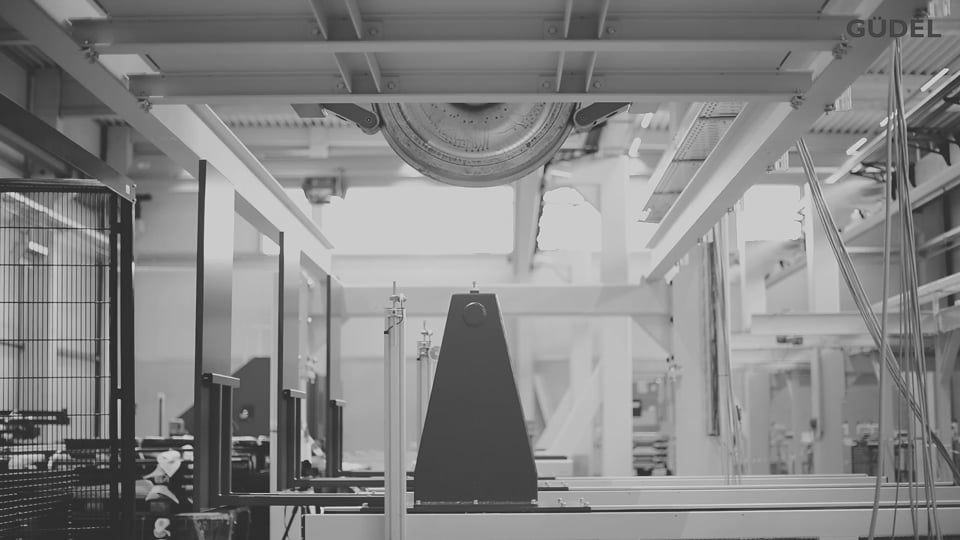

Güdel brings decades of expertise in system solutions for the handling of railway wheels, axles, and wheelsets. The portfolio includes a variety of grippers – including those for hot wheels at temperatures up to 950°C – as well as conveyors, marking stations, SPC stations and various storage modules and further applications.

Globally, up until today, more than 60 lines with over 180 gantry loaders in the railway industry have been equipped with Güdel automation solutions at more than 30 end-customers worldwide. This makes Güdel your competent and reliable global partner for your individual automation solutions in the railway industr

Speed
0
m/min
Payload
0
t
Wheels per year
0
+

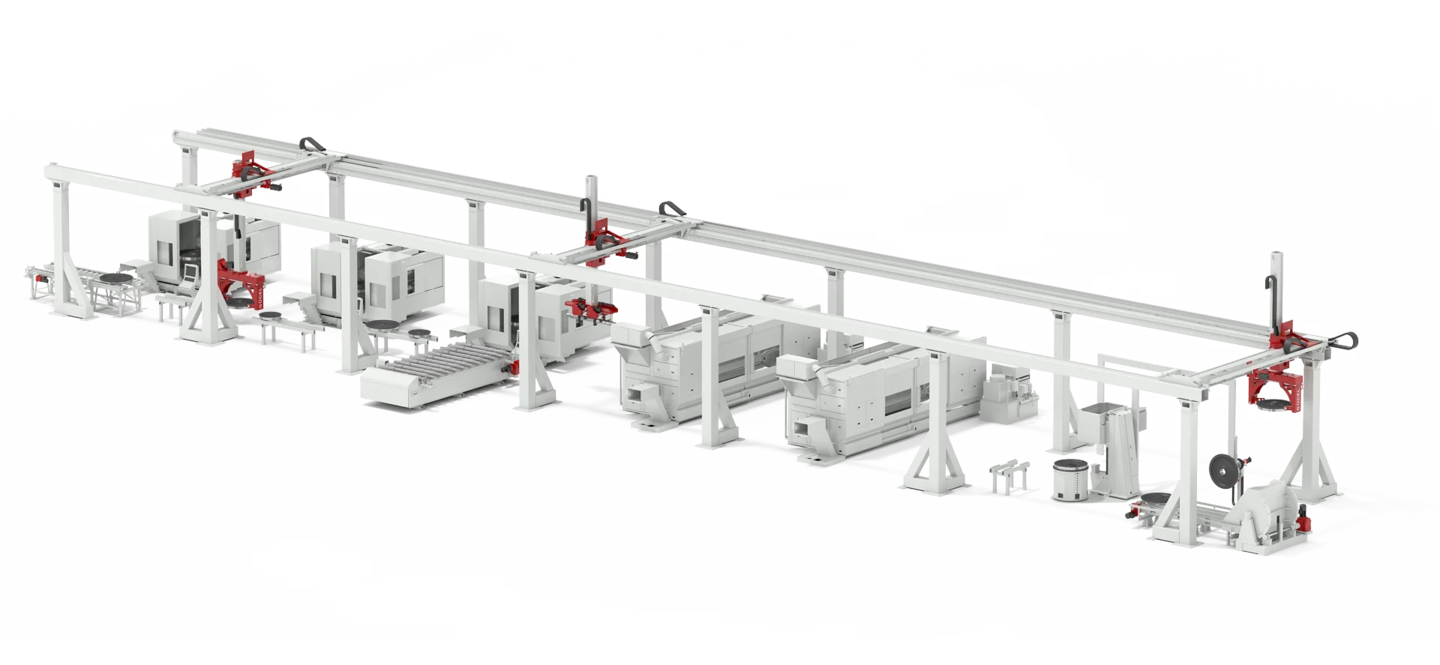

Our solutions for the railway industry

Güdel provides innovative e-mobility automation – from modular axes and gantries to complete systems and services.
Roller conveyor for wheels
The sectional-driven roller conveyer is specially designed for the railway wheels. It is mostly used for infeed and outfeed of the wheels in the automation solution. The conveyor contributes to a smooth floor transportation and the material flow can be controlled with its buffer function.
Chain conveyor for axles
The chain conveyor is specially designed for the railway axles. It is mostly used for infeed and outfeed of the axles in the automation solution. The capacity of the conveyor can be adjusted to the number of axles needed. Additional features, such as DMC scanner and marker, can be configured to the conveyor.
Axle Gripper
The axle gripper is a geared motor driven parallel gripper specially designed to handle the railway axles. With additional two servo drives, each parallel jaw set can be moved axially, independent from each other. This feature enables flexible machine loading. The wide gripping stroke covers the most axle diameters available in the market.
Tilting table for wheel stacks
The tilting table for wheel stacks is used mostly at the infeed and outfeed of the automation solution to change the orientation of the wheel stacks. With the help of the tilting table, the wheel stacks can be vertically or horizontally positioned.
Plain text reading station
The plain text reading station reads the marked plain text on the workpiece and guarantees the optimal type recognition and traceability.
Wheel Gripper
The standard wheel gripper is able to rotate and swivel the railway wheel, covering a wide range of wheel diameters. The gripper can be adjusted to different loading angle configurations. In addition, the specially designed heat-resistant hot wheel gripper can easily handle the railway wheel with temperature up to 950 °C.

CUSTOMER VALUES

Over 25 Years of Expertise

Güdel is synonymous with advanced, modular gantry technology and precise gripping systems. The 2-axis gantry ZP-7  and the 3-axis gantry FP-7 are optimally designed to meet railway industry applications that require high dynamics and payloads exceeding 3000 kg. The portfolio is rounded out by high-performance gripping solutions: wheel grippers that handle rotating and swiveling motions, hot wheel grippers rated up to 950 °C, axle grippers built for lateral loading and unloading, and systems designed to handle complete wheel sets.

Process Know-How

Our engineers possess in-depth expertise across the entire value chain of the railway industry – from raw materials through hot forming and heat treatment to machining and testing. This comprehensive process expertise forms the foundation for reliable automation solutions that are characterized by secure gripping, stable operations, and seamless integration into existing production processes.

Turnkey Solutions

Güdel develops and implements modular automation solutions – ranging from individual components to integrated systems. These include floor conveyor technology, handling systems, marking and camera stations, and safety solutions. The focus is on the design, delivery, and integration of automation components, as well as on providing support for the implementation of complete systems. Solutions are tailored to meet each customer’s specific process requirements.
