CoboMover OVERHEAD CMO

Linear track for cobots and small industrial robots

Technical Data Contact

More possibilities for cobots

Compact and flexible linear motion for extended reach and versatile automation tasks.

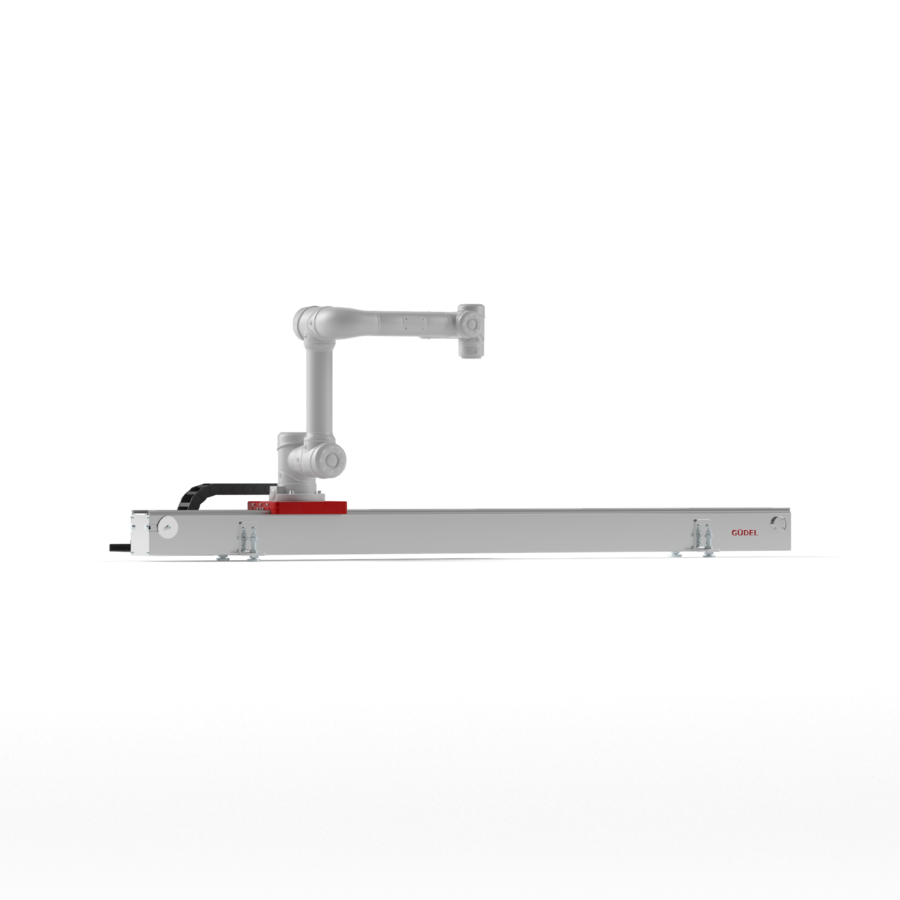

The Güdel CoboMover CMO linear track extends the working range of cobots and small industrial robots up to 5 m. This enables robots to serve multiple workstations and automate additional tasks. Its compact design is ideal for confined spaces and minimizes interference contours. Reduced pinch and crush points support collaborative applications.

Whether for welding, machine loading, machine tending, packaging, palletizing, assembly, or surface processing, the CMO provides reliable movement and flexible use in production. With decades of experience in linear motion technology, Güdel supports safe integration, reliable operation, and low maintenance requirements.



Flexible mounting options

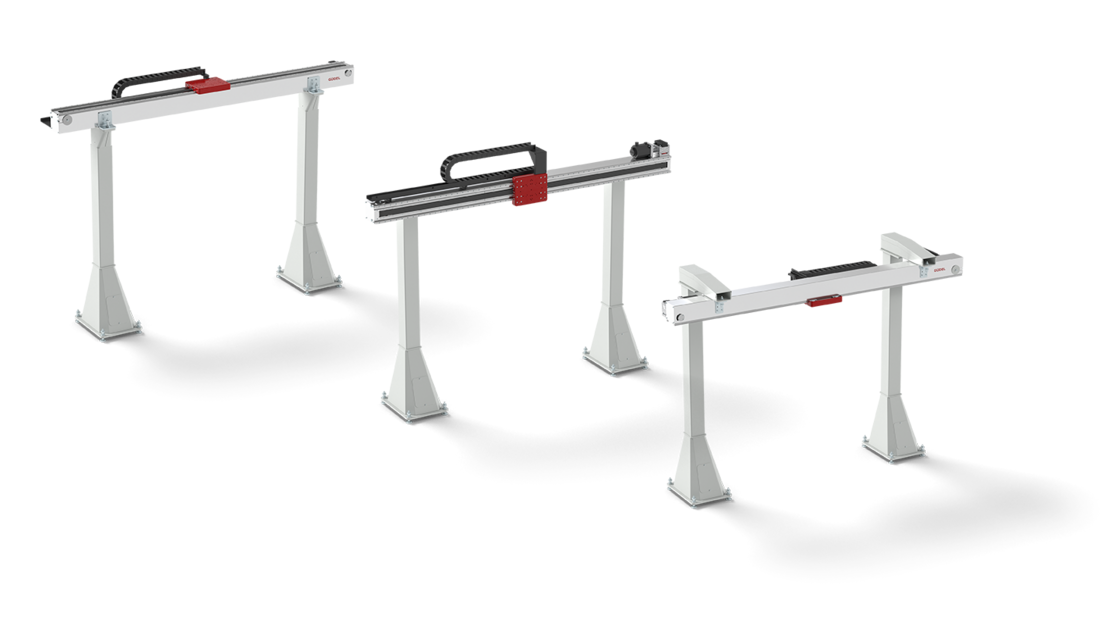

Floor-mounted, wall-mounted, or overhead – the CoboMover CMO adapts flexibly to your available space

For maximum flexibility in system design, the CMO is available in floor-mounted, wall-mounted, and overhead configurations. This allows the linear track to be optimally adapted to different space constraints and application requirements

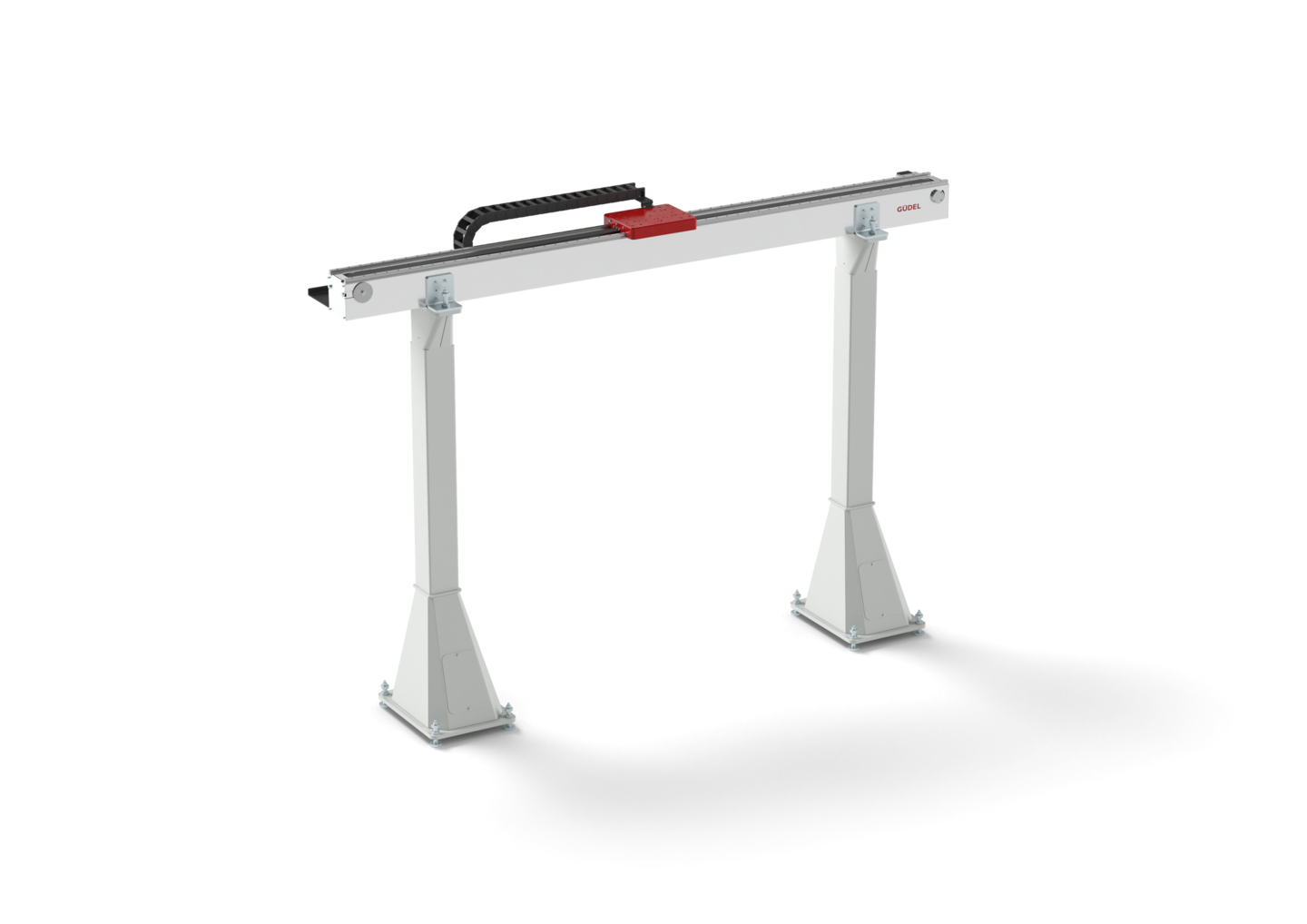

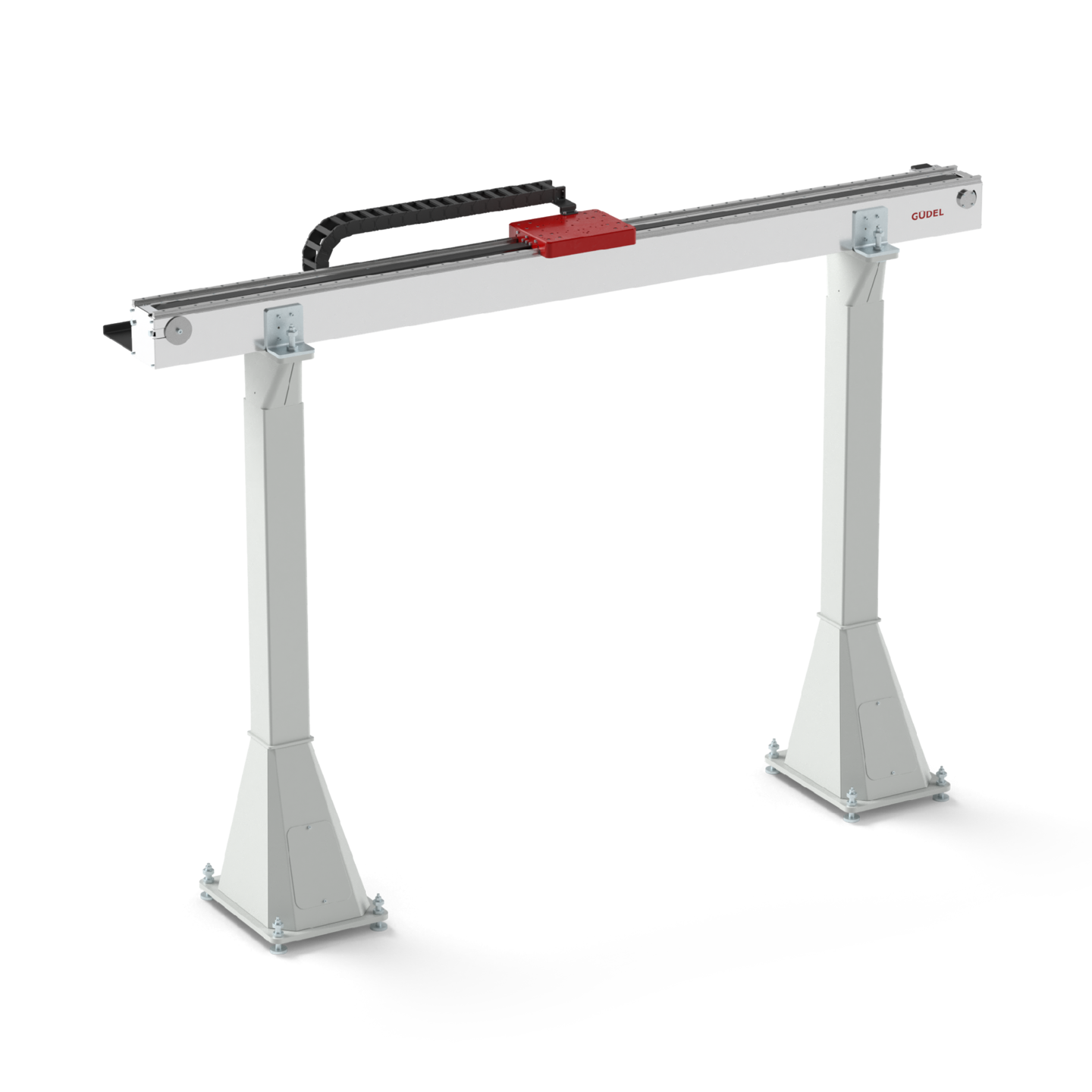

CoboMover CMO-E

Linear axis with elevated cobot position

CoboMover CMO-W

Linear axis with side-mounted cobot position

CoboMover CMO-C

Linear axis with suspended cobot position

Technical data

Compact, powerful, and flexible for a wide range of applications.
Static load capacity
85 kg
Robot weight
78 kg (incl. payload)
Number of carriages
1
Pedestal
On request
Speed
2 m/s
Acceleration
2 m/s²
Repeatability
±0.05 mm
Stroke
1 m to 5 m, in 1 m increments
Floor mounting
Floor leveling kit with anchor rod
Guidance system
Profile rail guides
Drive system
Timing belt and Güdel HPG045 angular gearbox
Noise emission
≤ 80 dB(A)
