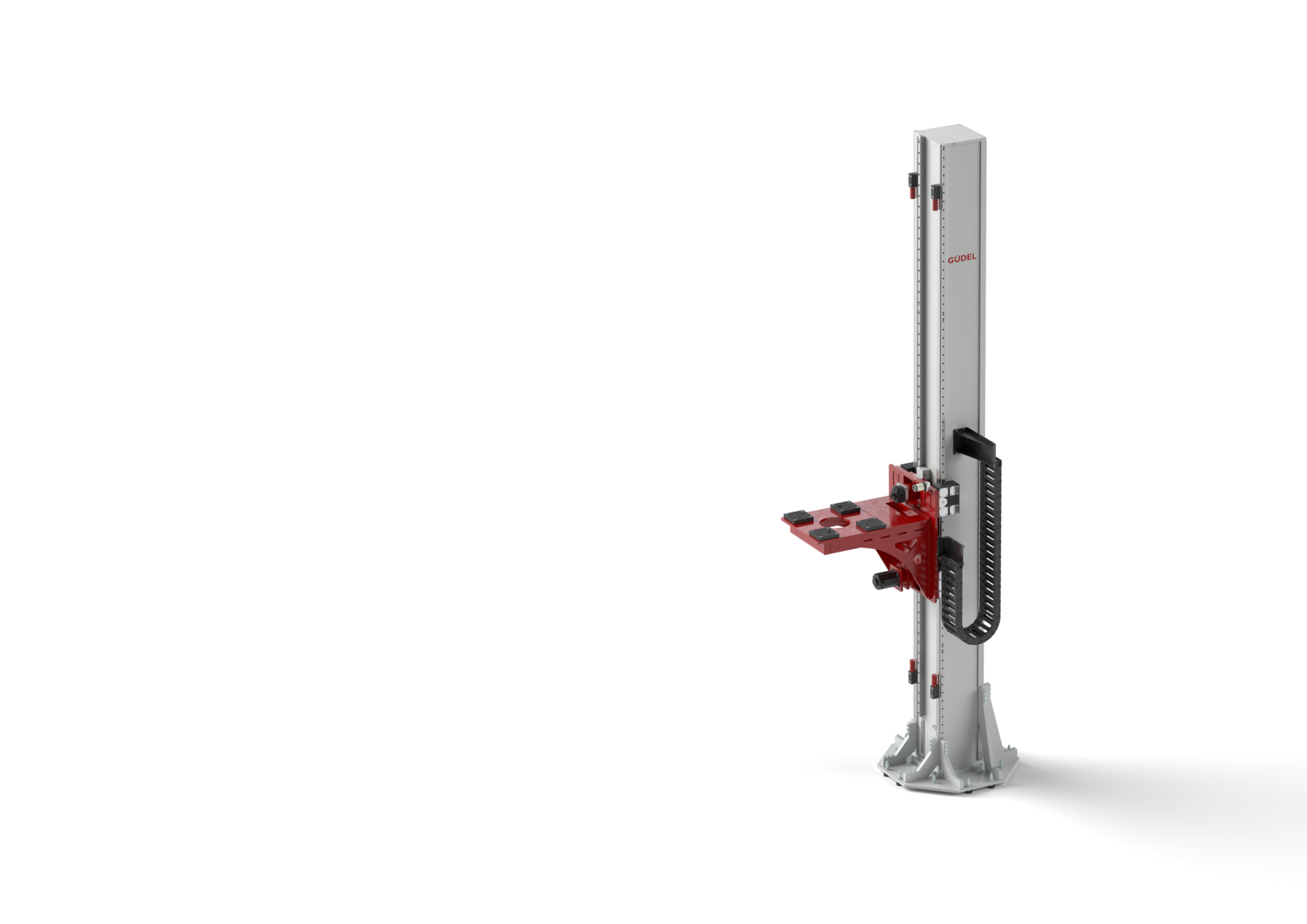

TrackMotion Vertical TMV
With TrackMotion Vertical, you can literally take your robots to a whole new level.
Our TrackMotion Vertical extends the working envelope of your articulated robot by adding a vertical axis, unlocking entirely new possibilities in automation.

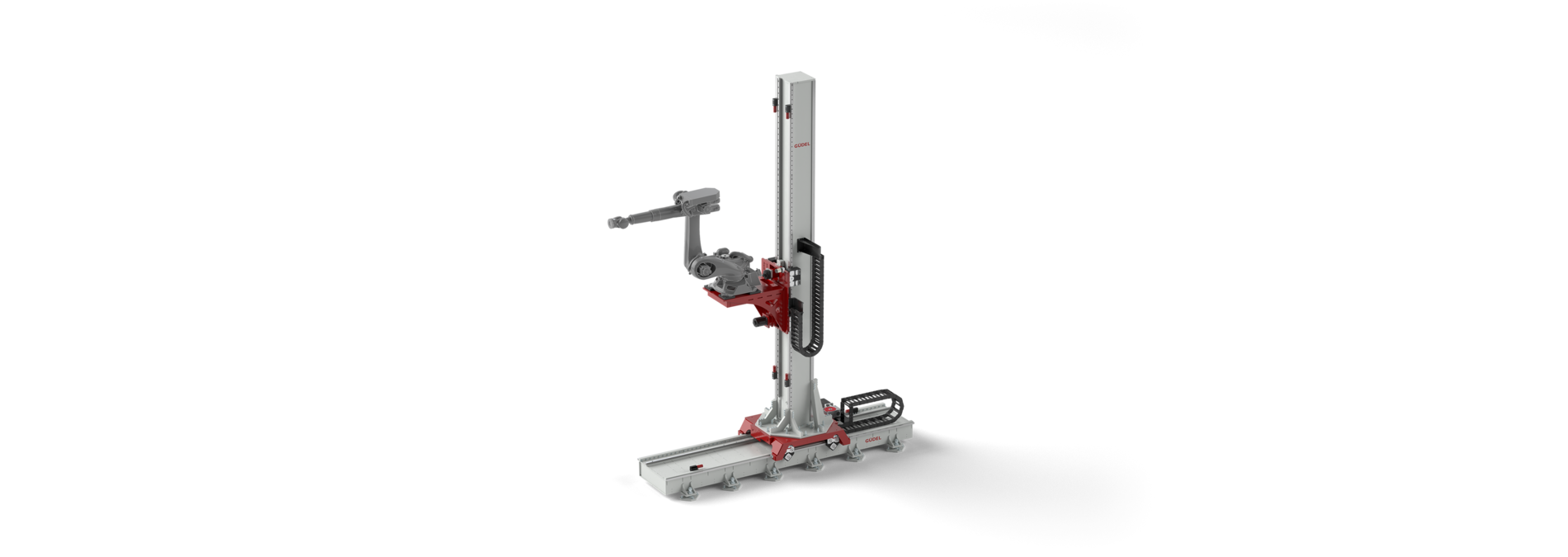

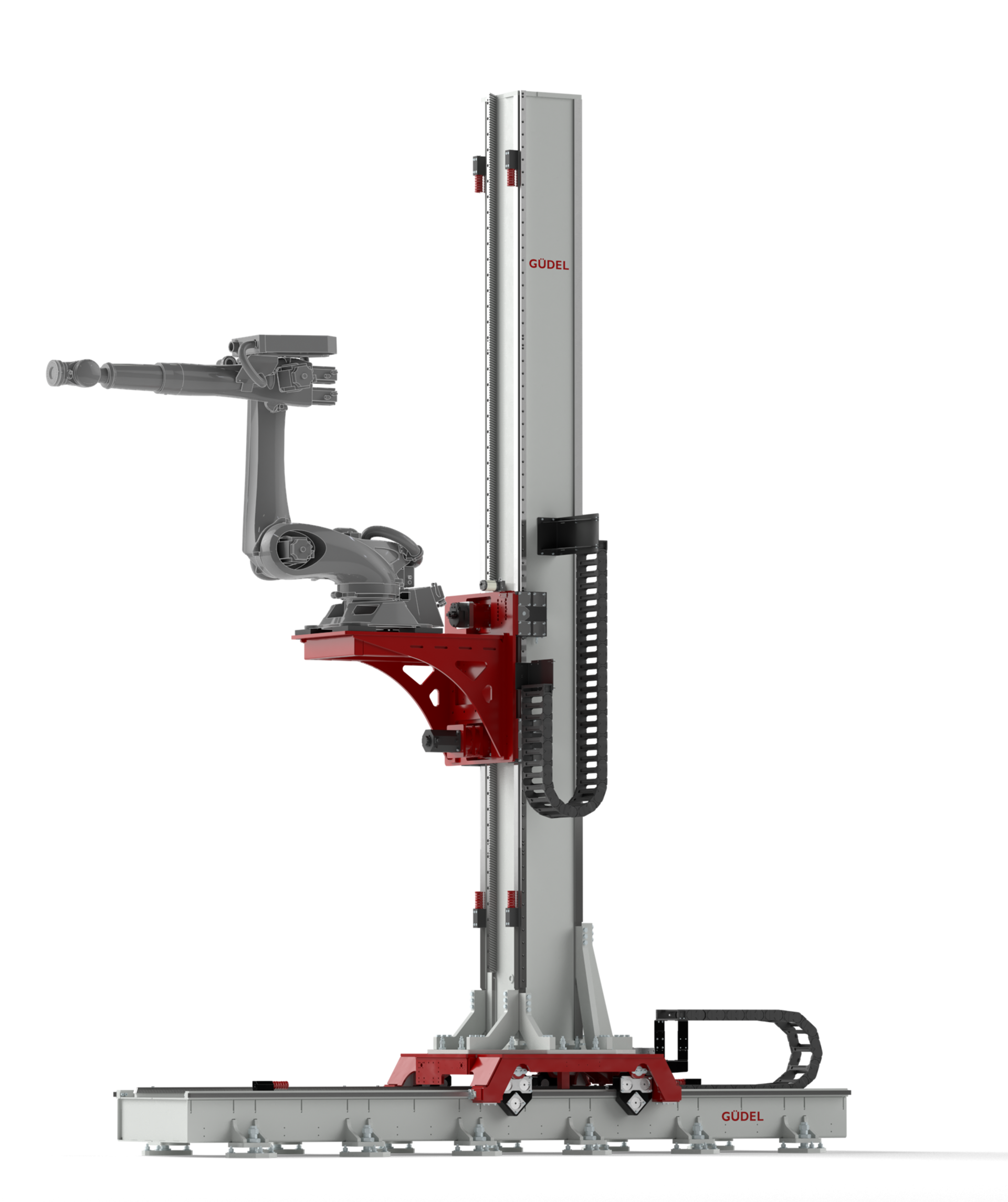

In combination with the floor traverse axis (TMF), flexible, powerful systems are created that can effortlessly master even complex tasks. This makes innovative ideas feasible.
TrackMotion Vertical is based on Güdel's proven, high-quality components – precision, reliability, and durability included. Thanks to decades of experience and in-depth expertise, we develop customized automation solutions that are perfectly suited to your application.
Güdel supports you on the entire journey to more efficient, smarter automation.
Technical specifications
The Güdel TrackMotion TMV is designed to meet the highest demands.

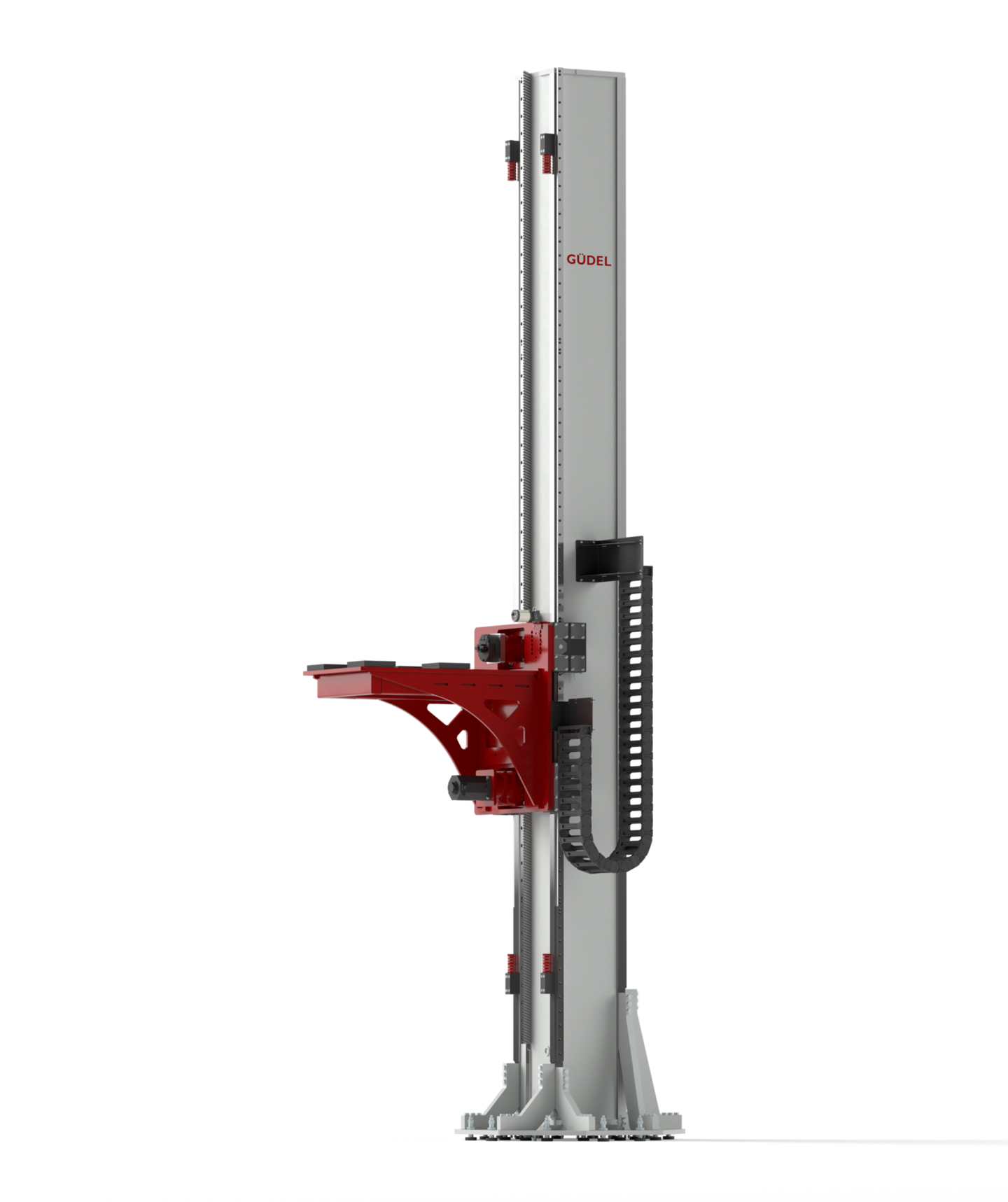

Thanks to the particularly stable carriage unit, the forces of articulated arm robots are safely absorbed in all directions.
Lateral and transverse guide rollers ensure high dynamics with a compact design – for precise movements, high payloads, and consistently reliable performance.
The vertical robot travel axis is compatible with a wide range of commercially available articulated robots.The vertical robot travel axis is compatible with many commercially available articulated arm robots. General specifications:
- Robot types from different manufacturers with a payload of up to approx. 250 kg
- Lifting height up to 16 m, with floor travel axis up to approx. 3 m
- Speed: 0.5–3.0 m/s (depending on robot type)
- Acceleration: 0.5–3.0 m/s² (depending on robot type)
Detailed specifications are available on request; the exact application will be clarified individually.
-
Güdel has over 30 years of experience in moving robots and over 70 years in automation
-
Maximum freedom of movement with a 7th and 8th linear axis for your articulated arm robot
-
Faster planning and short turnaround times thanks to a modular, pre-standardized portfolio of linear robotics modules
-
Short installation time and a long service life thanks to Güdel's proven technology, which has been tested many times on the market
- Safe movement of robots in the medium performance class
