Battery handling

Automation solutions for battery production.

Automation for maximum efficiency Applications Downloads Contact

As a centre of competence for automation solutions in battery production, Güdel is increasing efficiency throughout the entire manufacturing process – from the individual battery cell to the battery system weighing over 800 kg – through continuous innovation and technological development.

Regardless of whether it is a battery cell, a battery module, a battery casing, a complete battery system or other drive components such as rotors or stators, Güdel has the right automation solutions:
pick & place, machine loading, machine linking, loading and unloading, buffering, storage and more.

Flexible automation for maximum efficiency

Güdel develops innovative automation solutions for e-mobility – from drive components and modular axes to gantries and complete systems, including long-term service and maintenance.
Modular design and easy scalability
Flexible configuration from individual modules to complete systems, including controls Easily expandable gantry systems with well-defined interfaces.
Long travel distances and high load capacities
Travel distances of more than 100 m Load capacities up to 3125 kg Vertical strokes of up to 2.9 m Gantry supports with heights of up to 5.5 m
Cost efficiency and durabilit
Robust systems with a long service life Smart design for fast and cost-effective maintenance.
Maximum precision and repeatability
Repeatability of ± 0.02 mm for precise automation.
Everything from a single source
In-house produced components with a high level of manufacturing depth Comprehensive service with high availability.
Increased productivity
High dynamics with speeds of up to 3.3 m/s horizontally and 2 m/s vertically Acceleration of up to 6 m/s² horizontally and 10 m/s² vertically.

Applications

Overview

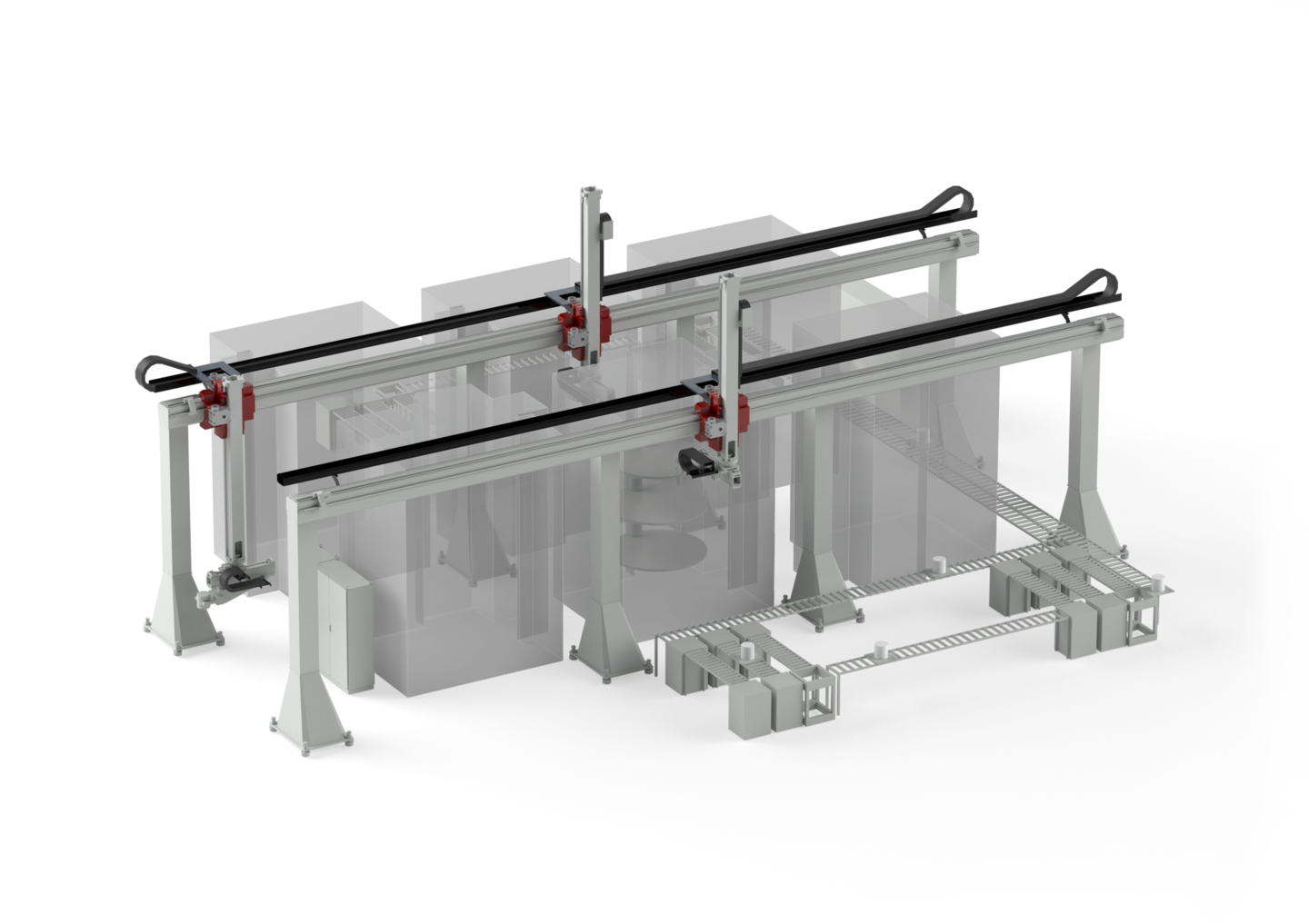

Machine tooling for rotors

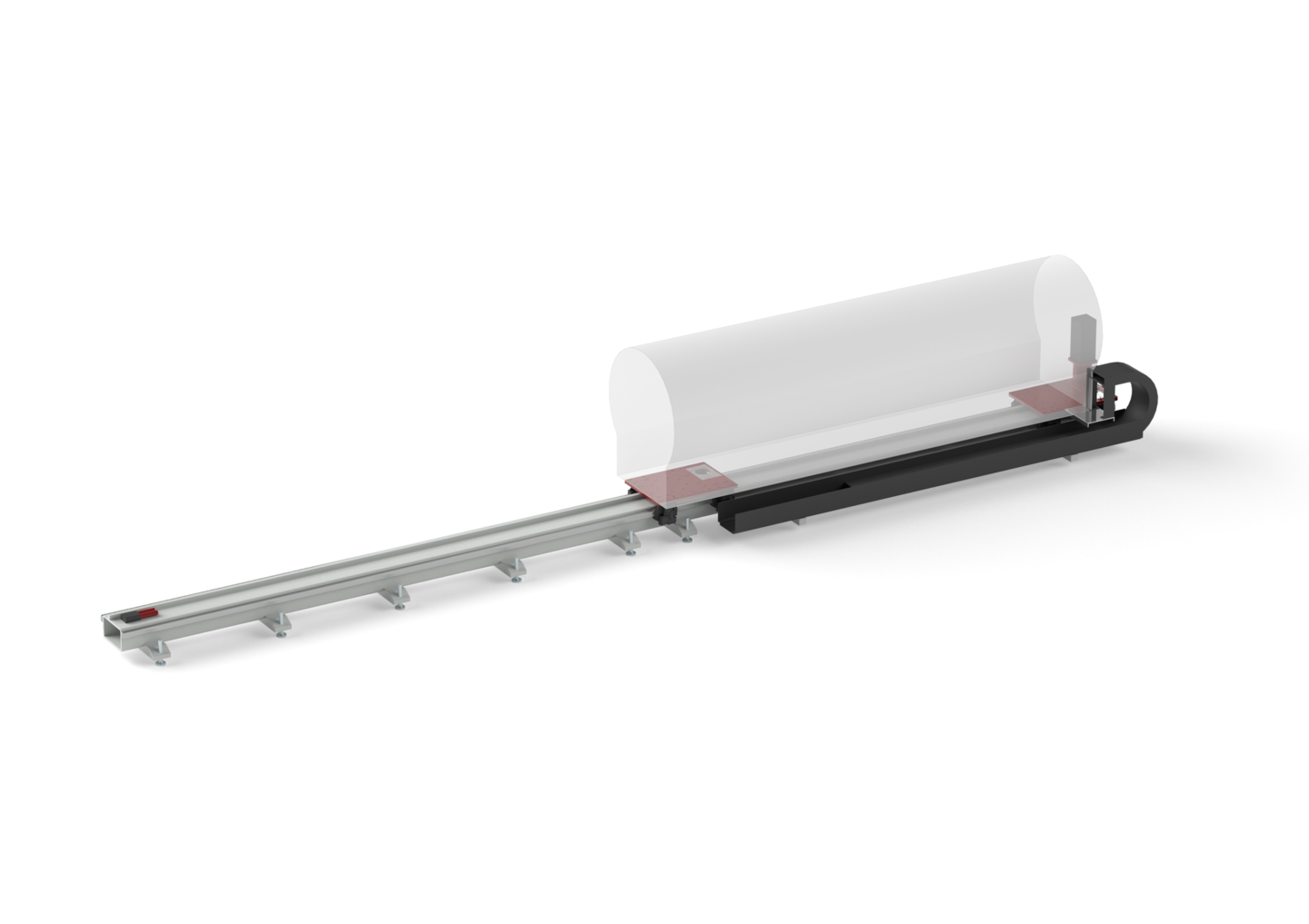

Handling devices for battery cells

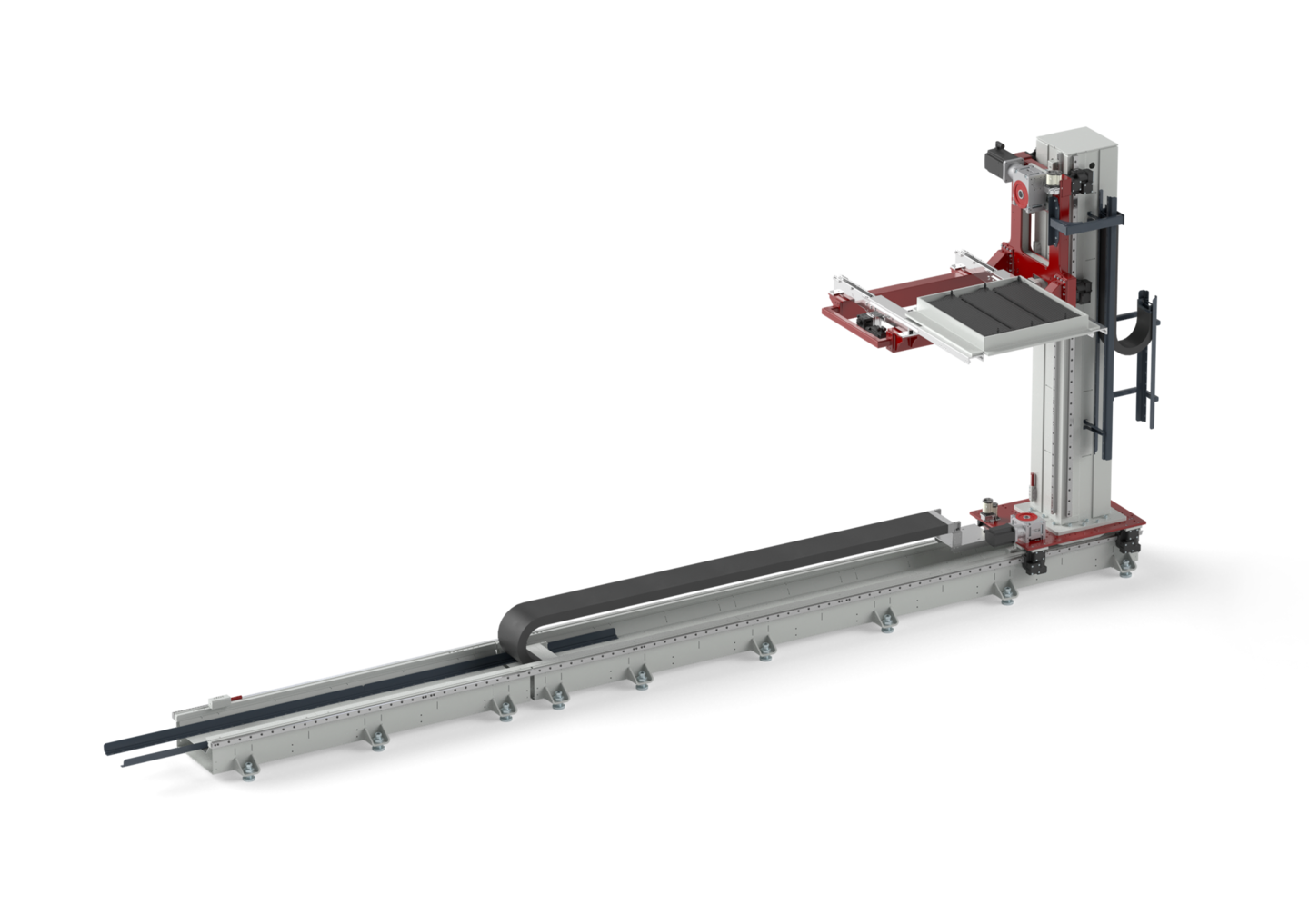

ASRS for battery modules

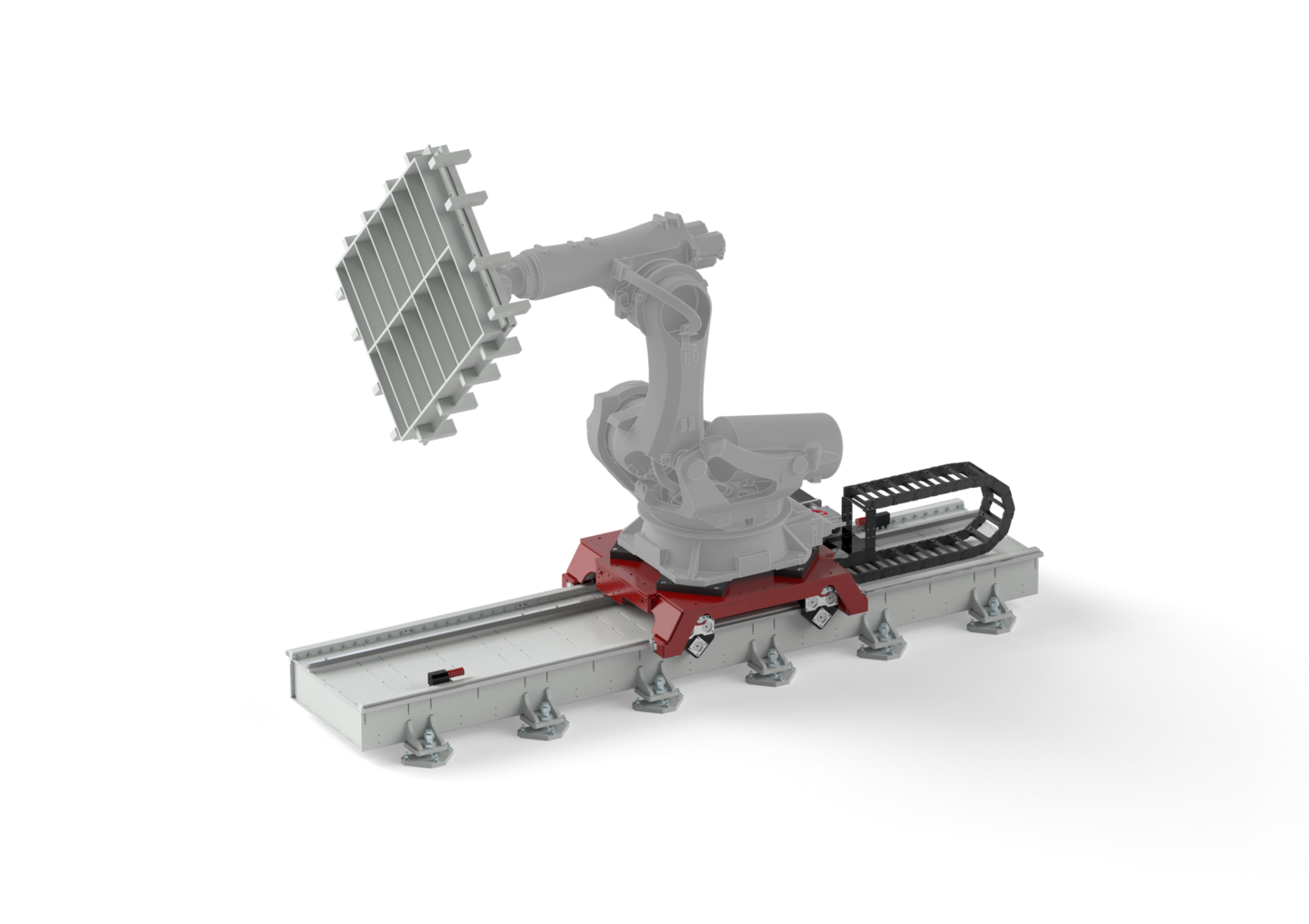

Linear tracks for robots for handling battery casings

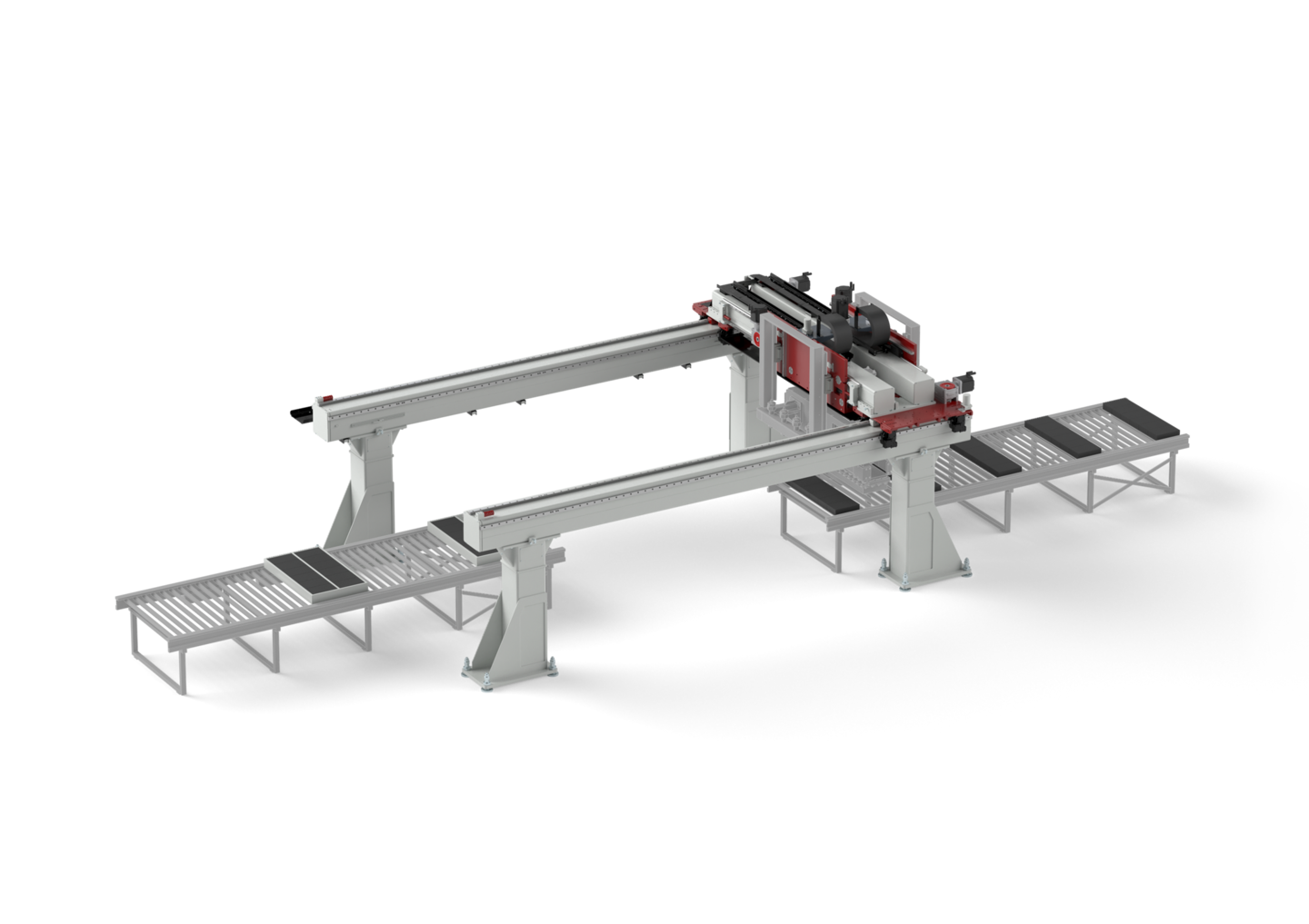

Pick & place with press-fit function for the battery modules into the housing

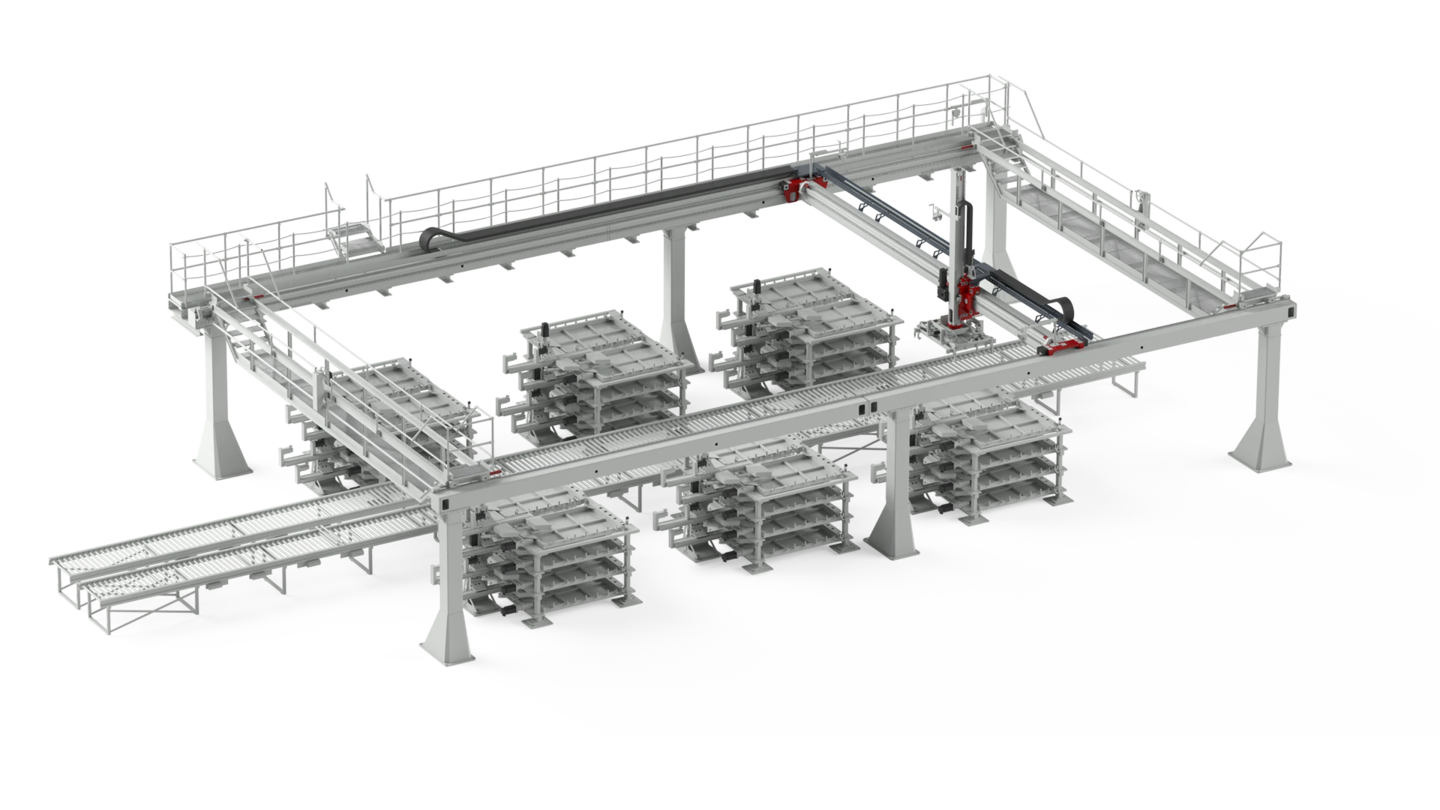

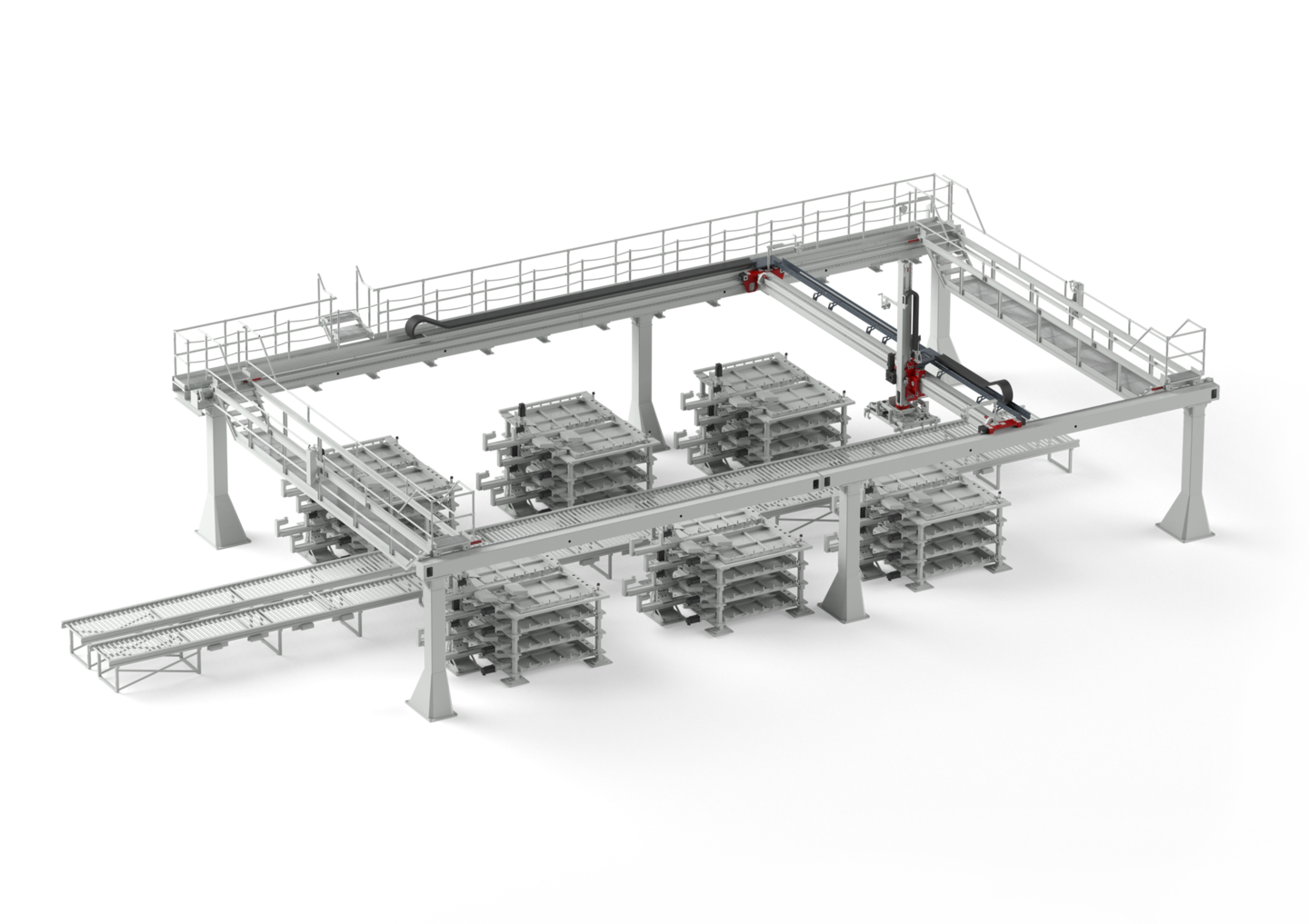

Loading and unloading of finished battery systems
