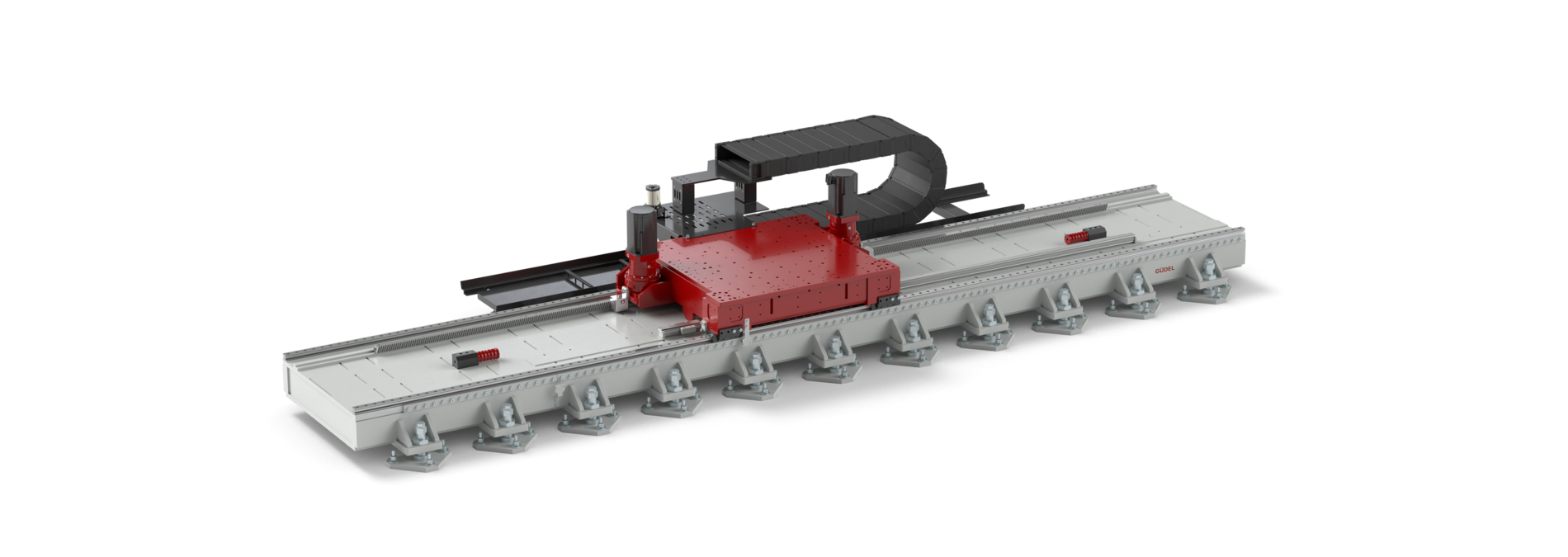

TrackMotion Precision TMP
The process axis for maximum precision, rigidity, and path accuracy
High-precision linear axis for Machine Tool Robot (MTR) applications

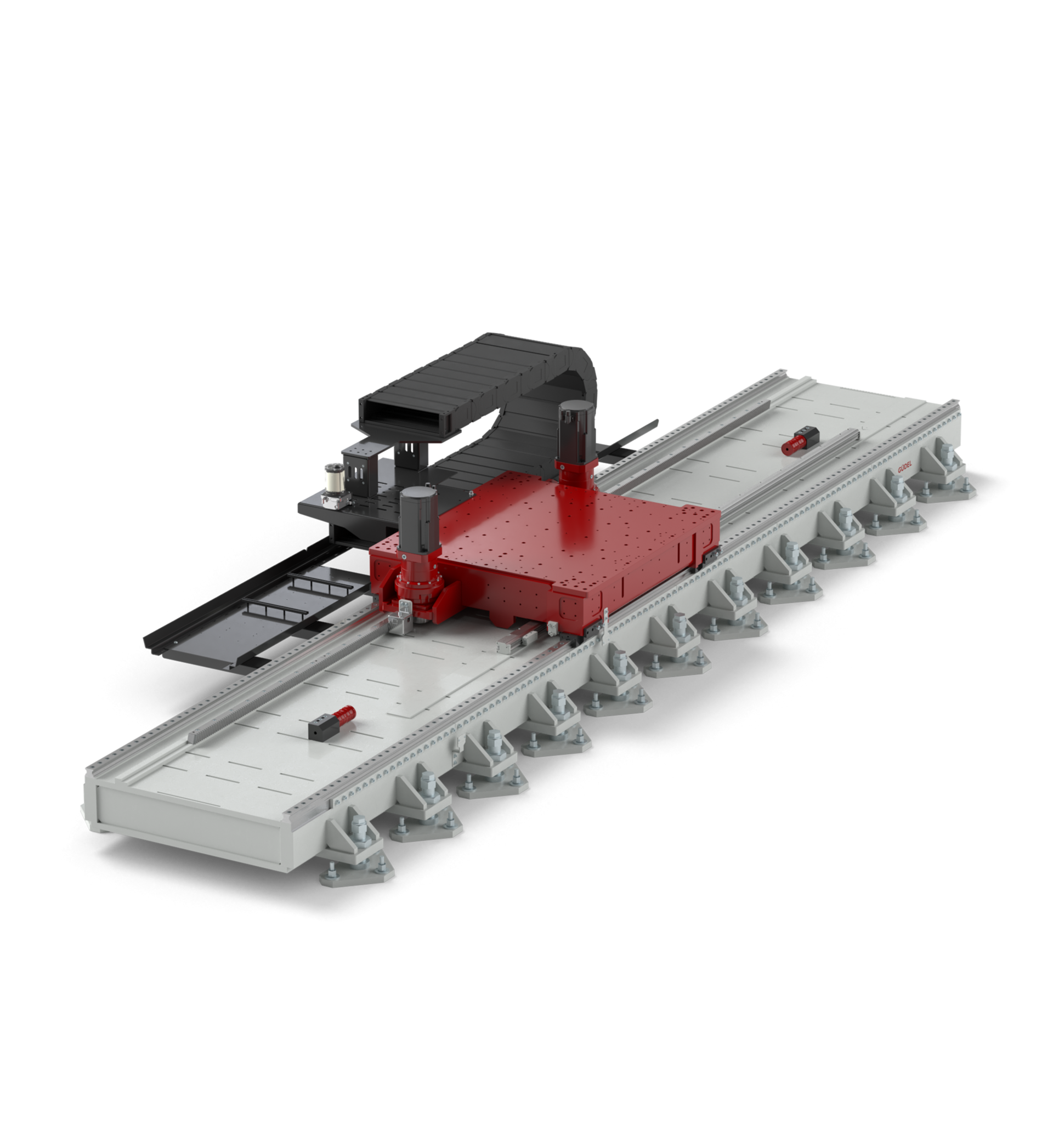

The TrackMotion Precision TMP process axis is based on Güdel’s proven linear axis technology and has been further developed specifically for high-precision machining processes. Conventional linear axes quickly reach their limits in demanding machining applications, as deflection and insufficient rigidity can affect precision and process quality. The TMP is one of the most rigid linear axes on the market and combines high-precision planetary gearboxes developed and manufactured in-house with an especially rigid design. Together, these features provide the basis for exceptional precision and maximum process stability.
With up to ten times higher stiffness than a standard Güdel linear axis and a dual-motor drive, the TMP ensures maximum torsional and drive stiffness. This enables machining across a wide range of materials, from lightweight materials to steel, with manufacturing tolerances down to 0.1 mm. The TMP is ideal for MTR applications in the medium to high payload range.

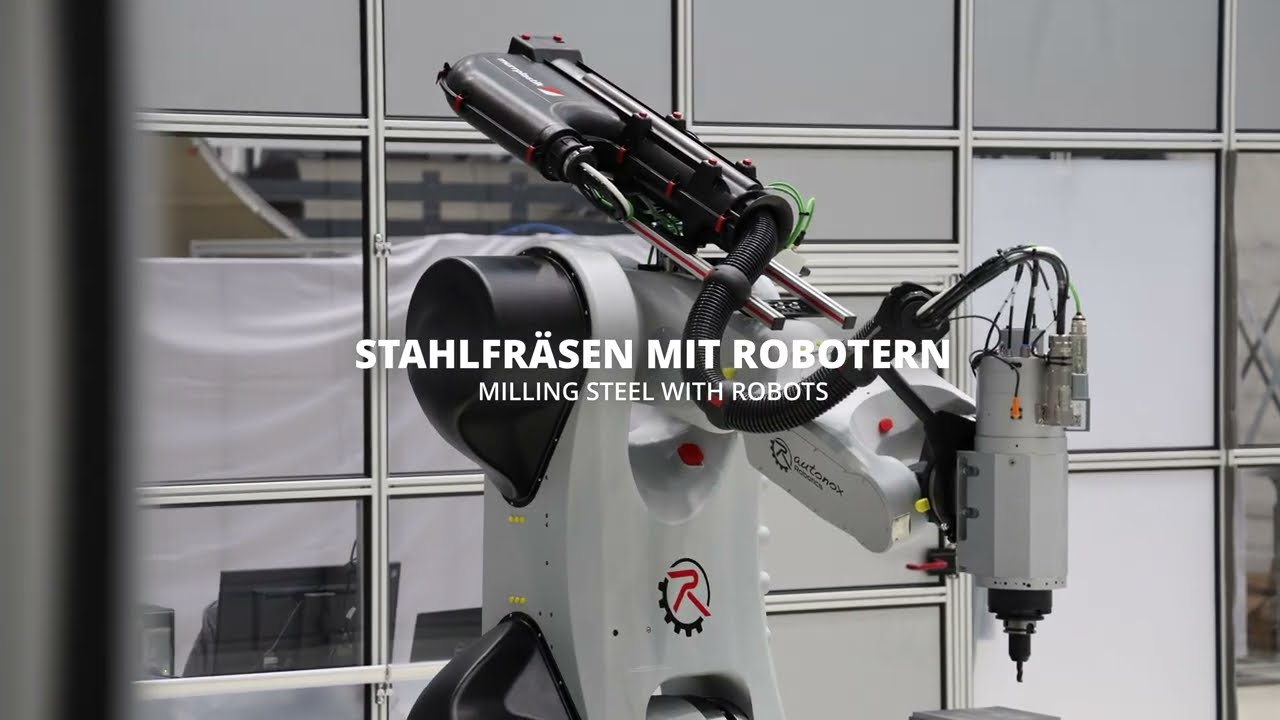

Precision and Rigidity for Robotic Machining
TrackMotion Precision TMP enables high-precision robotic machining for demanding industrial applications

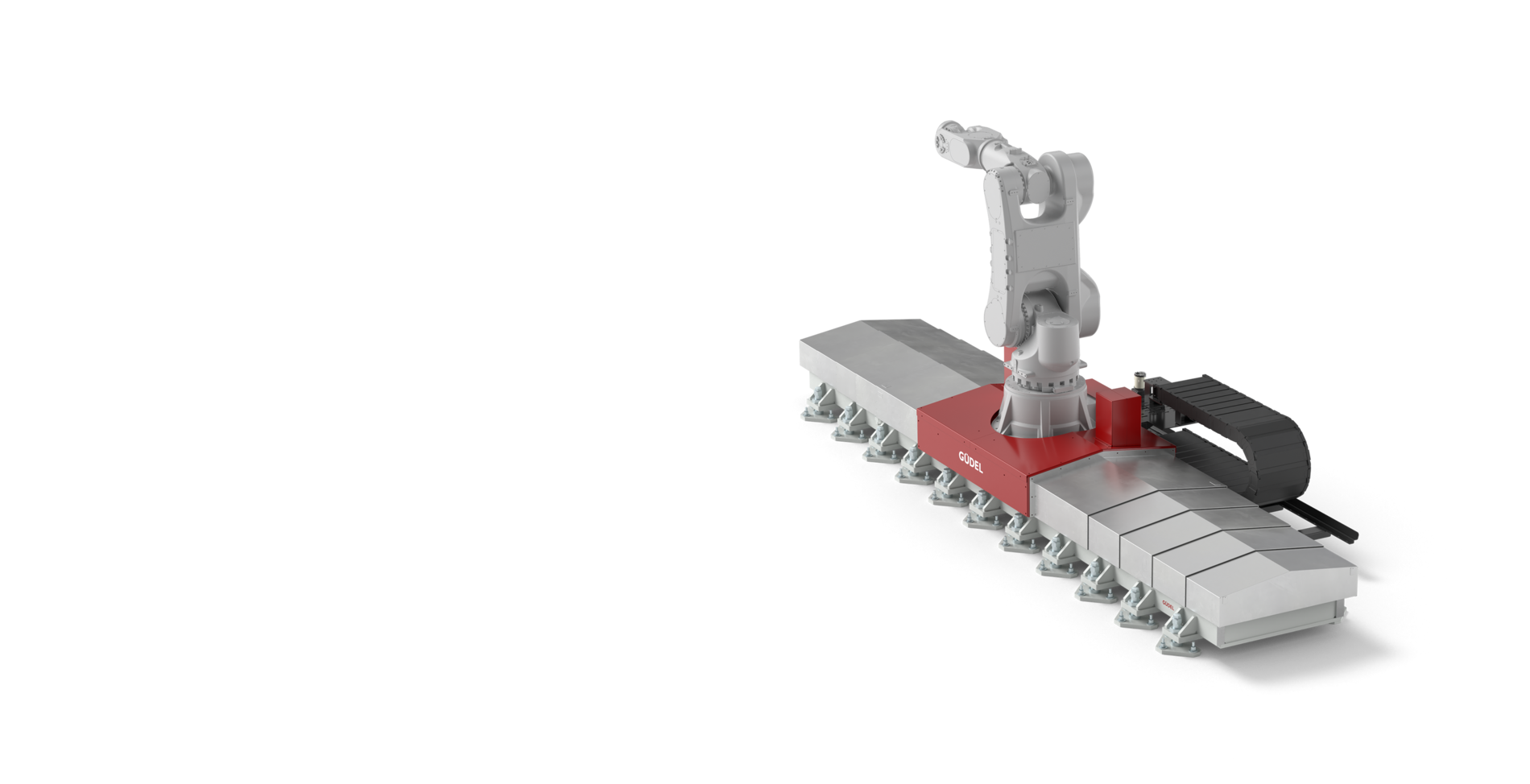

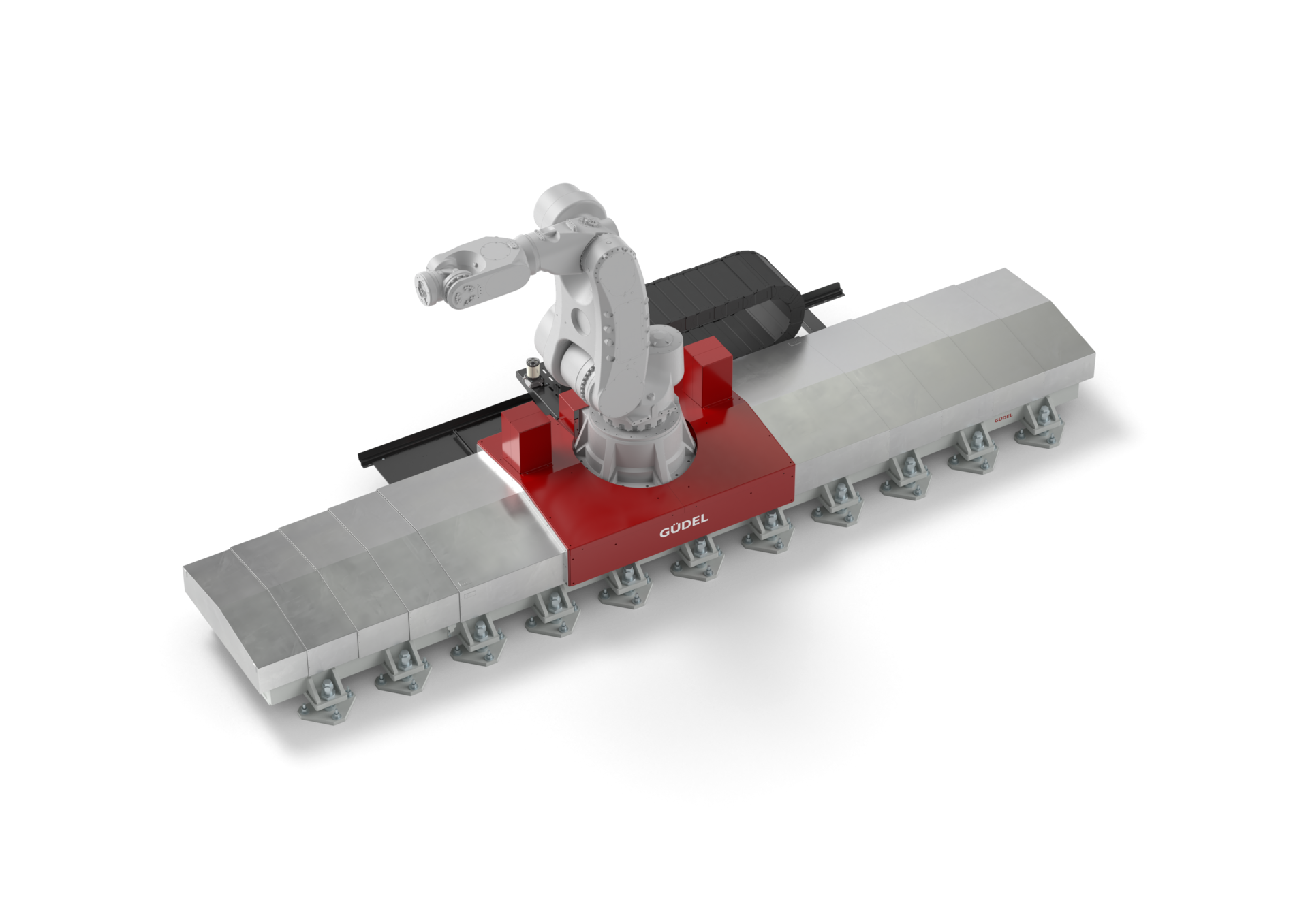

TrackMotion Precision TMP with telescopic cover and Machine Tool Robot (MTR)

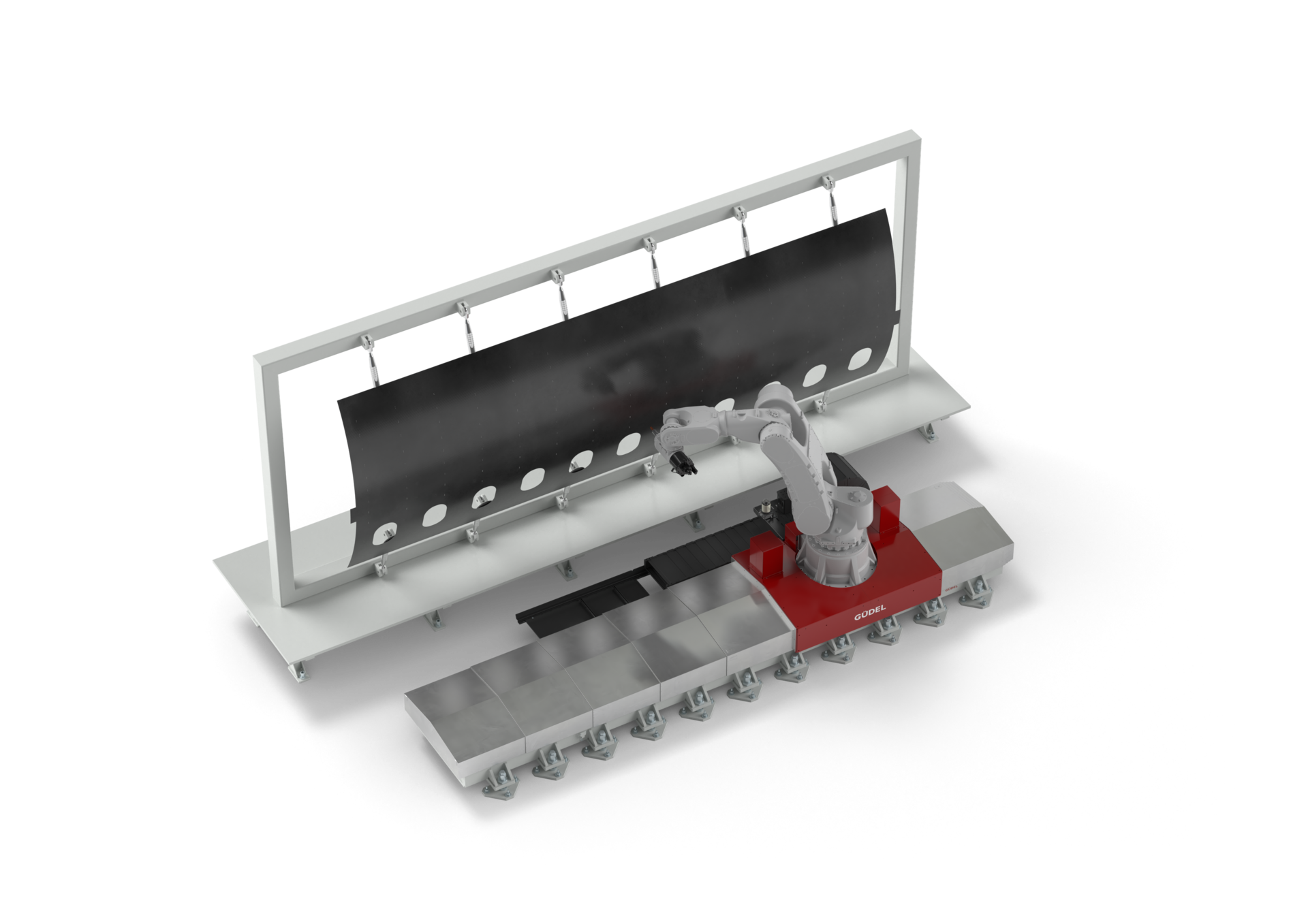

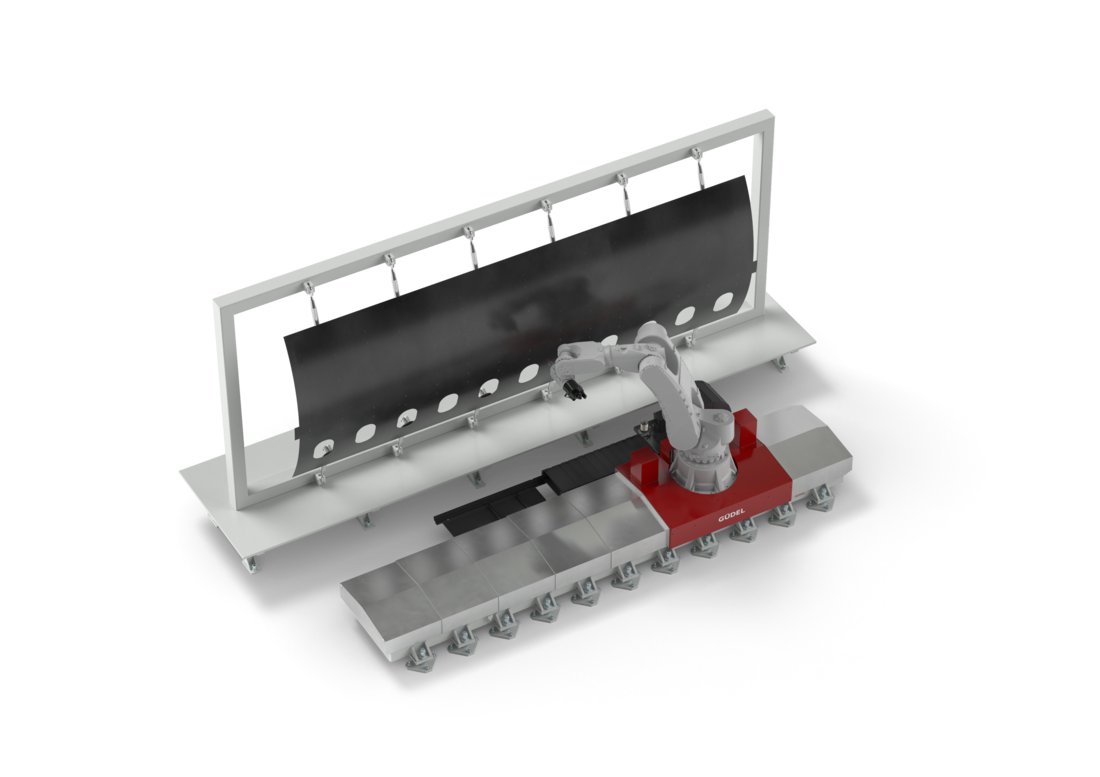

Machining an aircraft fuselage with TMP, equipped with telescopic cover and MTR

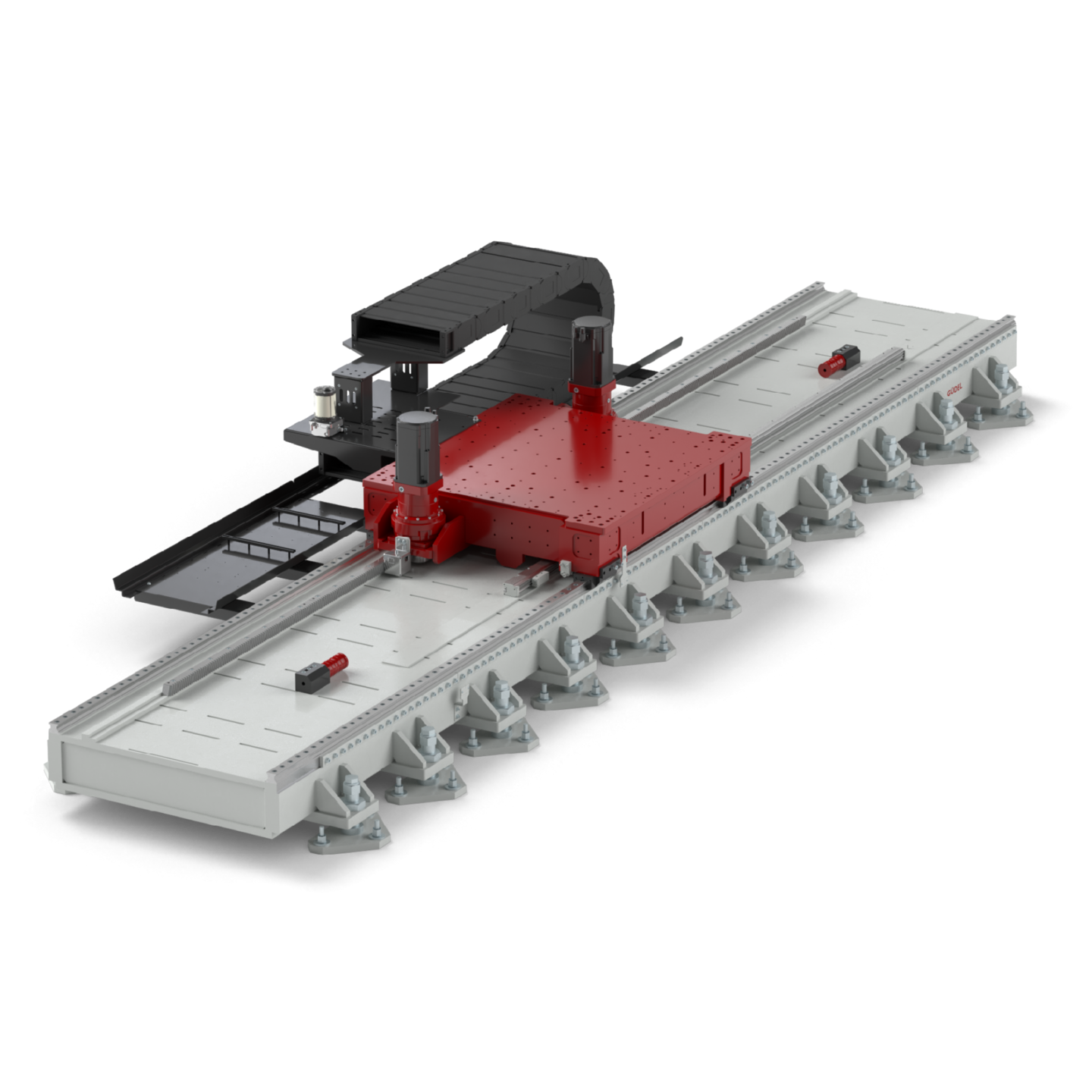

Technical specifications
Engineered for maximum precision, rigidity, and performance
| Robot weight | up to 4,500 kg (incl. payload) |
| Number of carriages | up to 2 |
| Base height | up to 500 mm |
| Speed | up to 1 m/s |
| Acceleration | up to 2 m/s² |
| Repeatability | ±0.005 mm |
| Stroke | 1.5 to 48.5 m, in 1 m increments |
| Floor mounting | Floor leveling kit with anchor rods |
| Guide system | Linear profile guideways |
| Drive system | Backlash-free dual-drive system with two high-precision Güdel NRH180 planetary gearboxes and hardened, ground helical rack and pinion |
| Noise emission | ≤ 75 dB(A) |
| Direct measuring system | Secondary absolute linear encoder |
Compatibility
-
Autonox Machine Tool Robots
-
Danobat dBot
-
Mabi MAX
Looking for other robots?
Explore our Product Finder.
Options
-
Telescopic cover to protect the linear kinematics
Application areas
-
Large-part manufacturing
-
Aerospace
-
Metalworking
