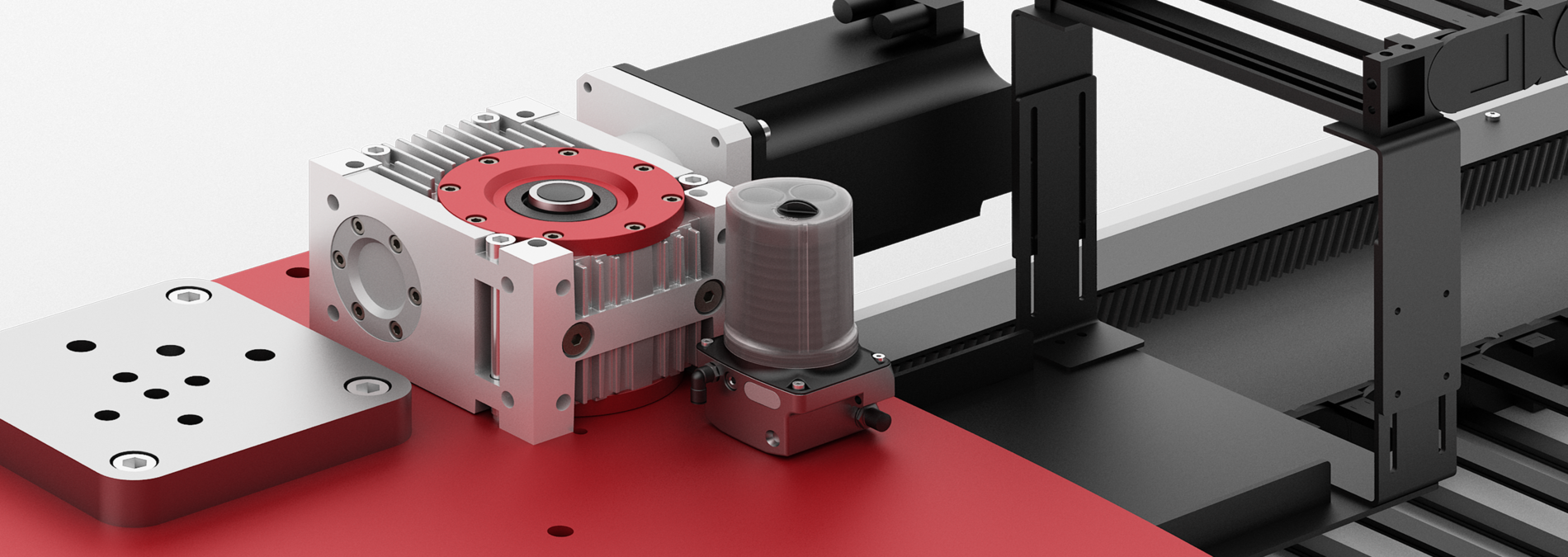

Automatic lubrication system

Simplifying maintenance

Guideways, racks, and pinions can be lubricated by an optional automatic lubrication system. Depending on customer needs and integration requirements, the selected system reduces the downtimes of the overall plant.
Güdel provides documents for installation, integration, and operation. Orientation aids for lubricants, lubrication interval, cycle, or quantity, help to ensure an adequate lubricating film.

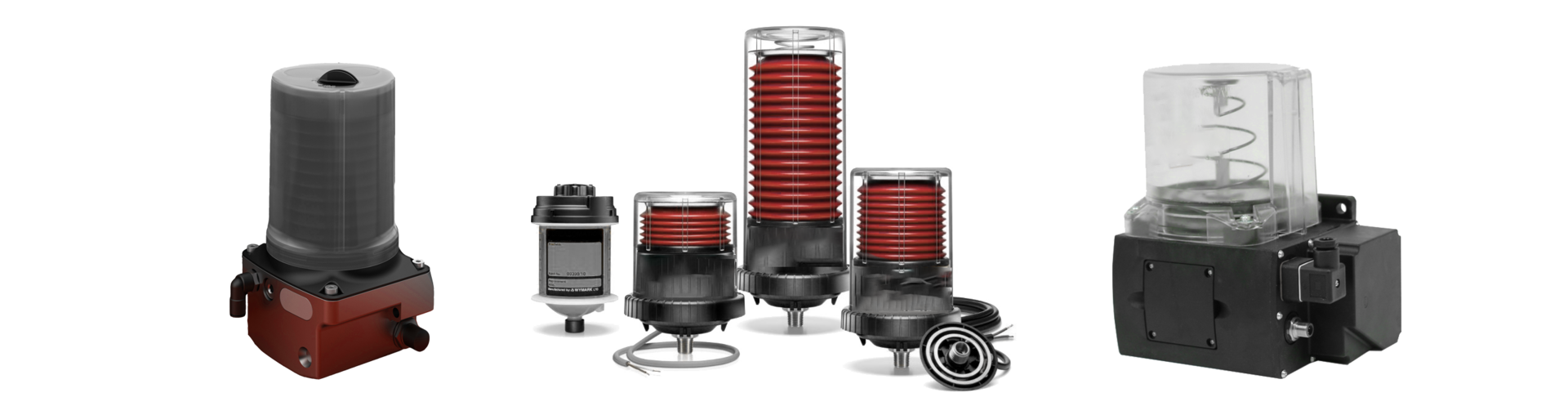

An overview of the products

FlexxPump, Memolub and SKF-Vogel

FlexxPump

Battery-operated, fed with 24VDC, or controlled by an external control system, the FlexxPump automatic lubrication system can be used in a wide variety of ways.

learn more

Memolub

Battery-operated, fed with 24VDC, or controlled by an external control system, the Memolub automatic lubrication system can be used in a wide variety of ways.

learn more

SKF-Vogel

The automatic lubrication system SKF-Vogel is used as a central lubrication with viscous grease.

learn more

FlexxPump automatic lubrication system

The FlexxPump automatic lubrication system is a lubrication system for Güdel components. The FlexxPump feeds the lubricant from the cartridge into the lines. Depending on the design, the lubricant is distributed through splitters, combined through Y-segments, or distributed directly to the lubrication areas. Rack and pinions are lubricated by lubricating pinions; guideways are lubricated by lubricating elements.

Standard lubricant: Güdel H1 high-performance lubrication oil with viscosity  4000 [mm2/s] at +40°C. Food grade with H1 approval. NSF registration number 146621. In cartridges of 400 [ml].

Independent installation position

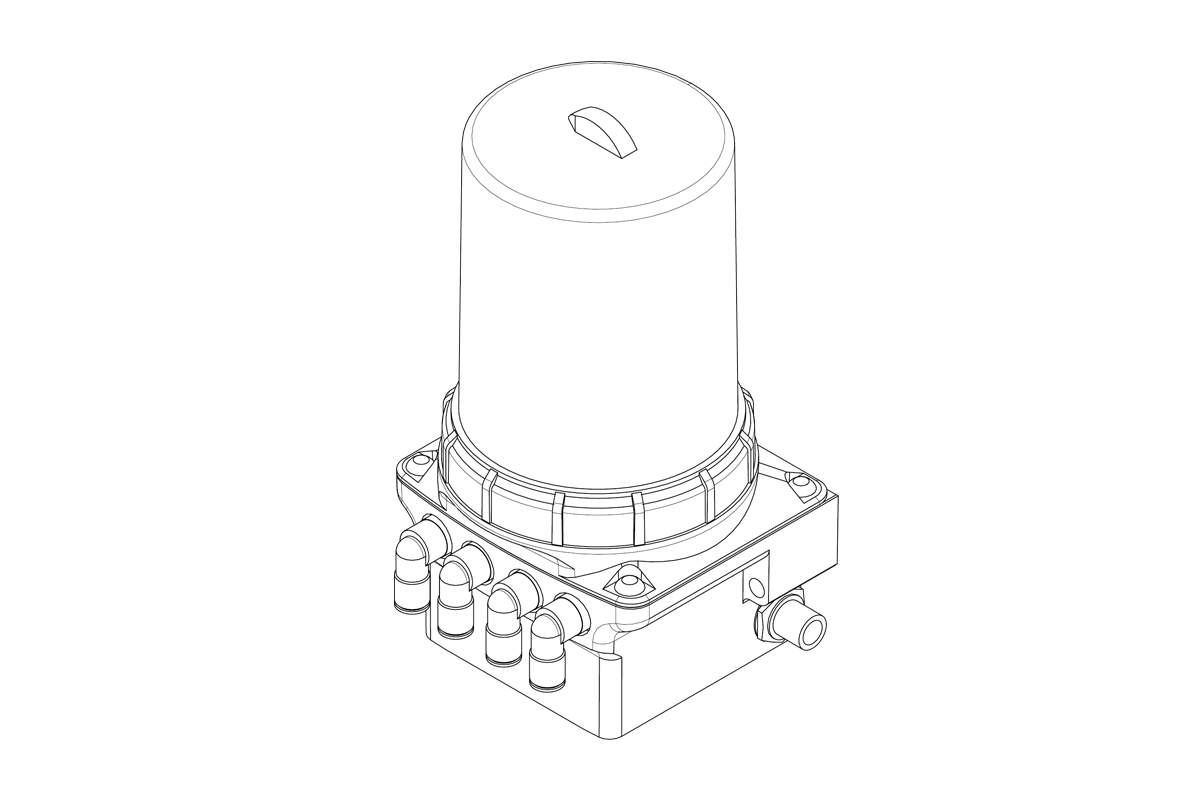

FlexxPump4 D424A

The lubrication cycle is programmed by the machine control system (PLC). The voltage supply and connection to the control system are provided via a cable.

FlexxPump4 N412A

The lubrication cycle is set at the pump. Voltage supply via cable. Lubrication pressure, empty message and signaling of malfunctions can be read at the display.

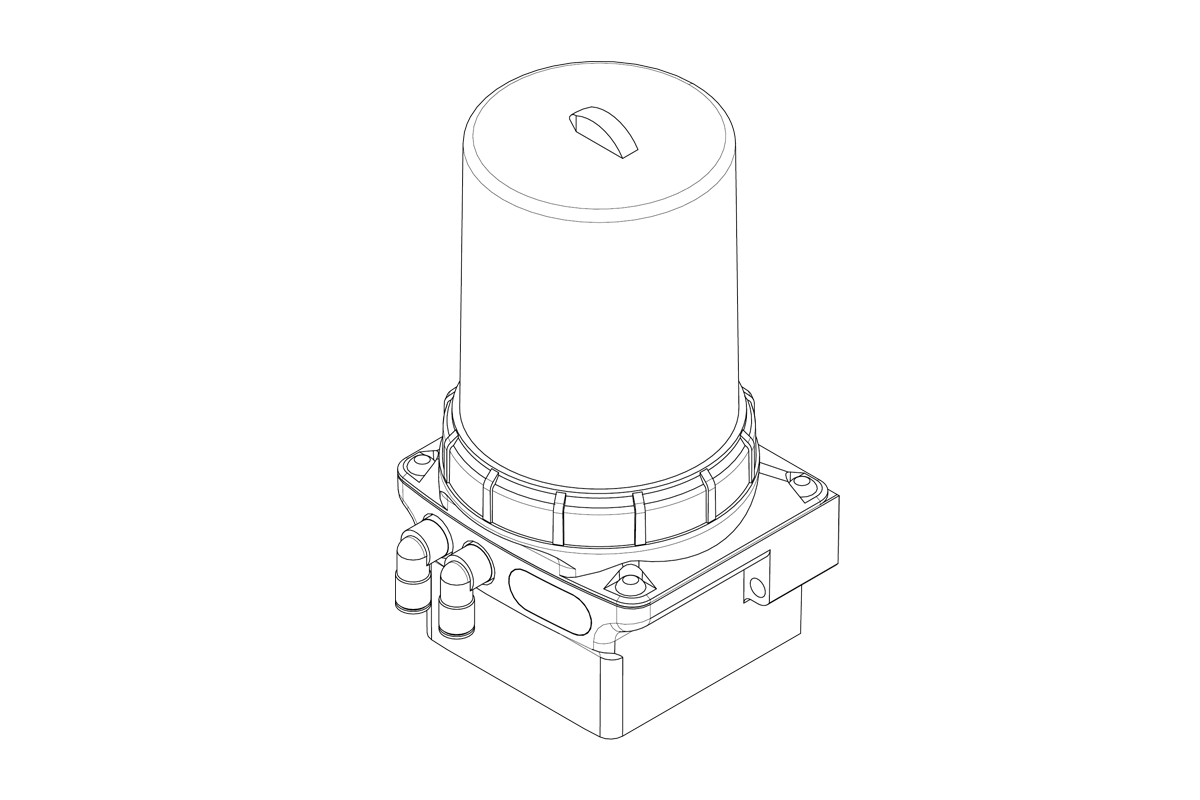

FlexxPump4 B412A

The lubrication cycle is set at the pump. Voltage supply via a battery. Lubrication pressure, empty message and signaling of malfunctions can be read at the display.

Memolub automatic lubrication system

The Memolub automatic lubrication system consists of a small lubricant dispenser with progressive distributor with several outputs. The automatic lubrication system lubricates the guideway and rack of the equipped axes automatically. The lubricating pinion unit lubricates the rack. The wiper and lubrication unit lubricates the guideway.

Standard lubricant:
Oil, Mobil Glygoyl 460. Viscosity 460 [mm2/s] at 40° C. Contains silicone particles.
In cartridges of 125 [ml].

Optional lubricant:
Grease, multi-purpose grease Longtime PD2. NLGI grade 2.

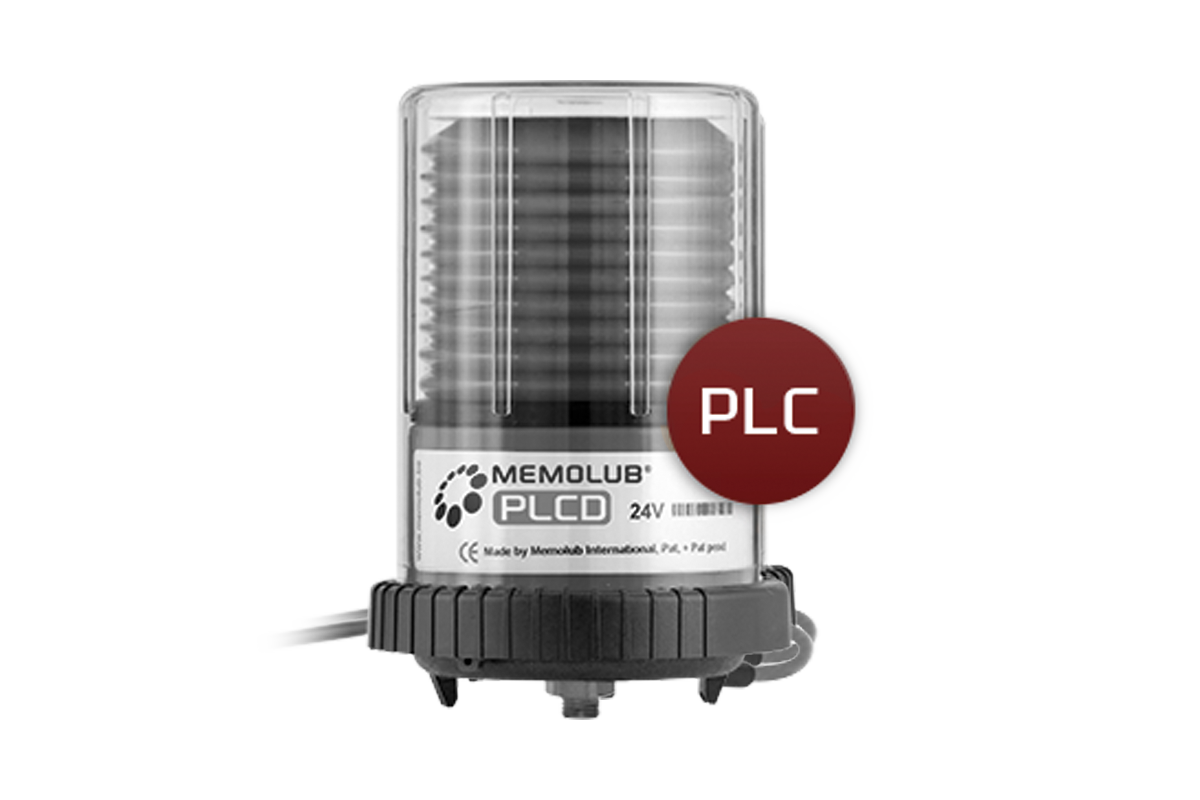

Memolub PLCD

The lubrication cycle can be programmed via the automatic control system. For this, a 24V connection line must be led to the control system.

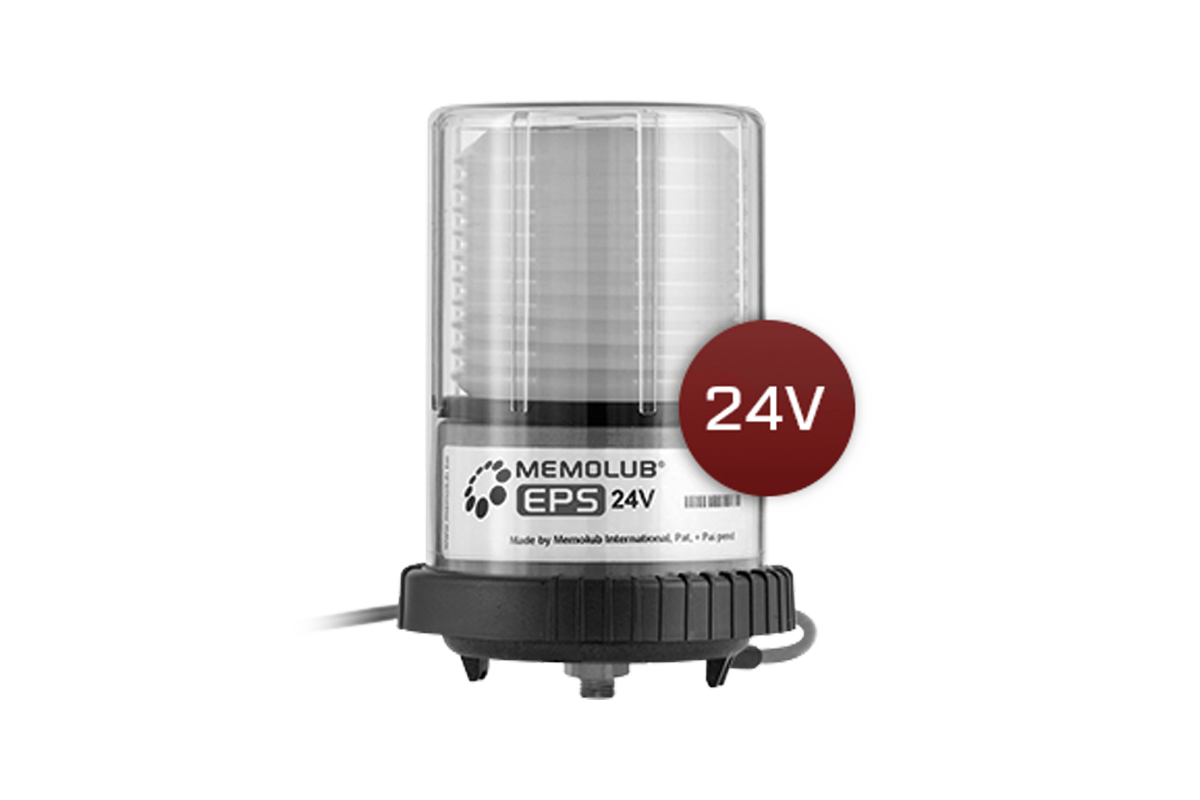

Memolub EPS

The lubrication cycle can be set by coding. The lubrication cycle is set there. The voltage supply is external.

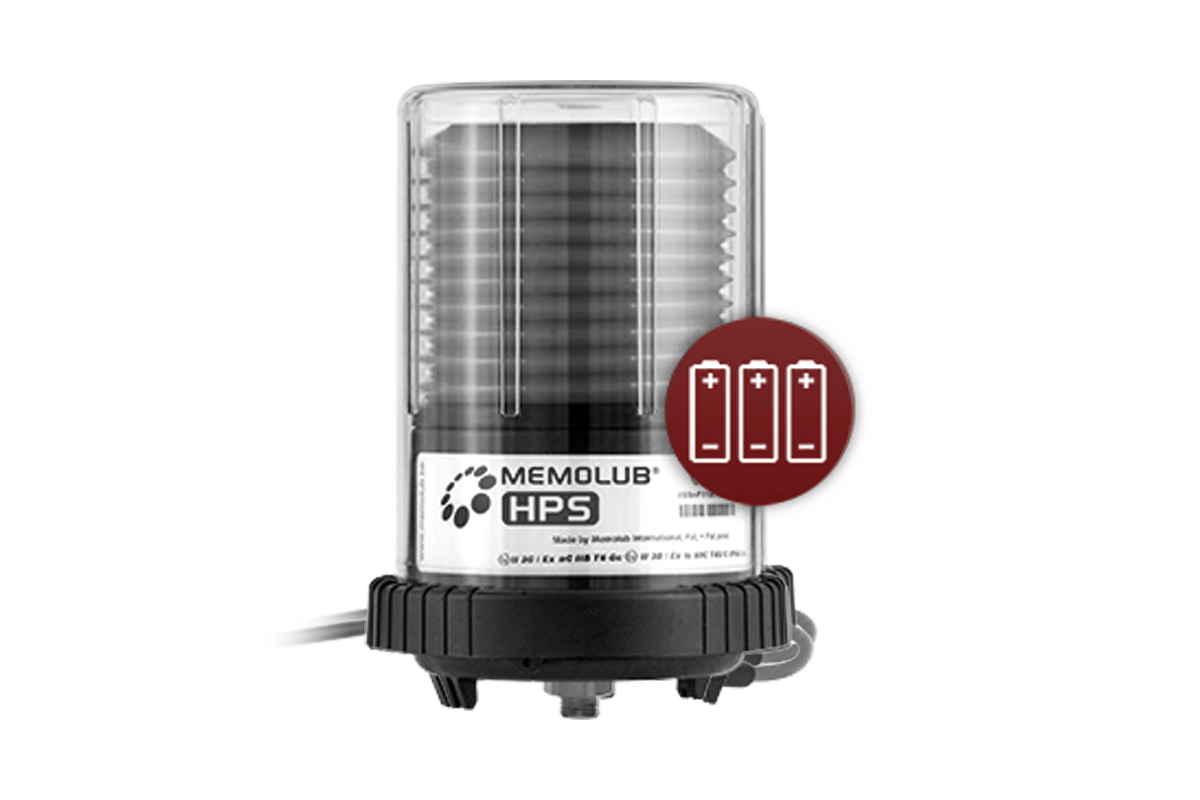

Memolub HPS

The lubrication cycle can be set by coding. The voltage supply is with batteries.

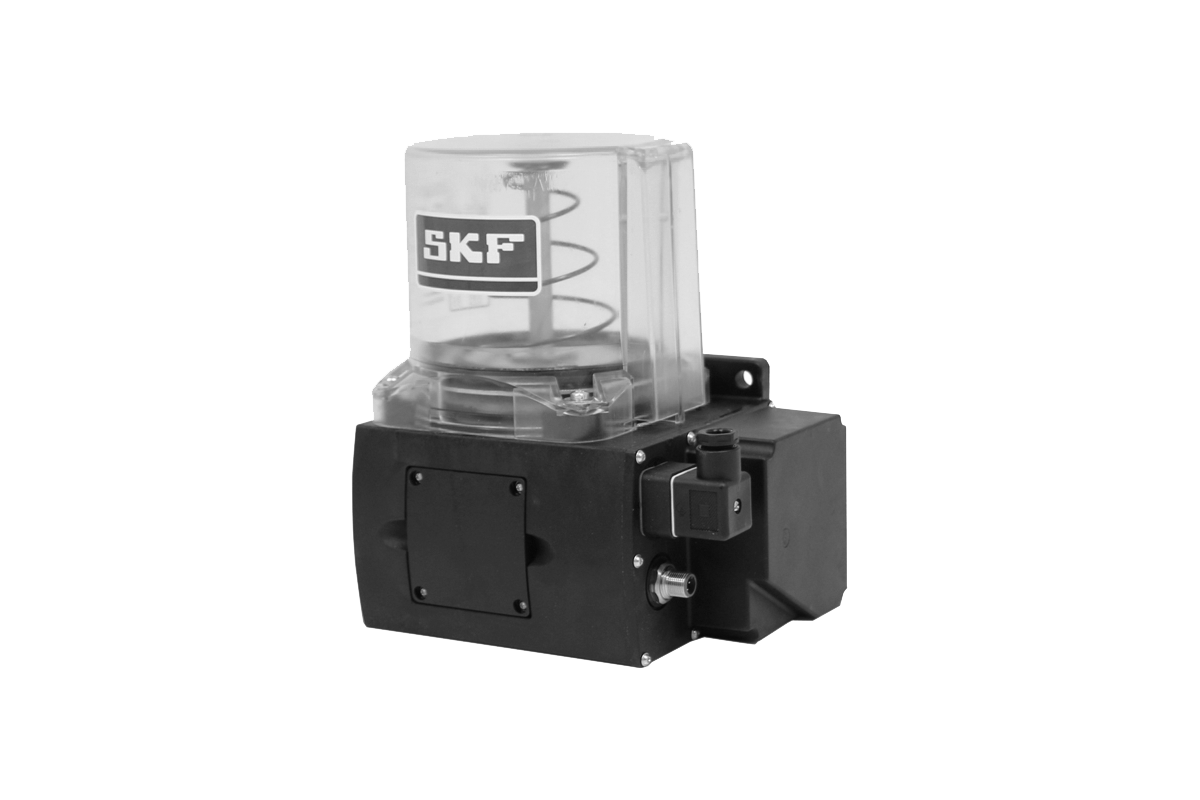

SKF-Vogel automatic lubrication system

The toothed-wheel pump aggregate with container serves to supply lubricant to the central
 lubrication at systems.
For regular lubricant dispensing, the toothed-wheel pump aggregate has to be controlled by a PLC. To this end, a pulse rhythm needs to be sent for every lubrication cycle, by means of a control signal.

Standard lubricant:
 NLGI classes 000 and 00.
Container content of 1000 [ml].

The documentation is specific to the sales order. For this reason, Güdel does not provide any downloads online.
