Type MLB

Linear axis with belt drive

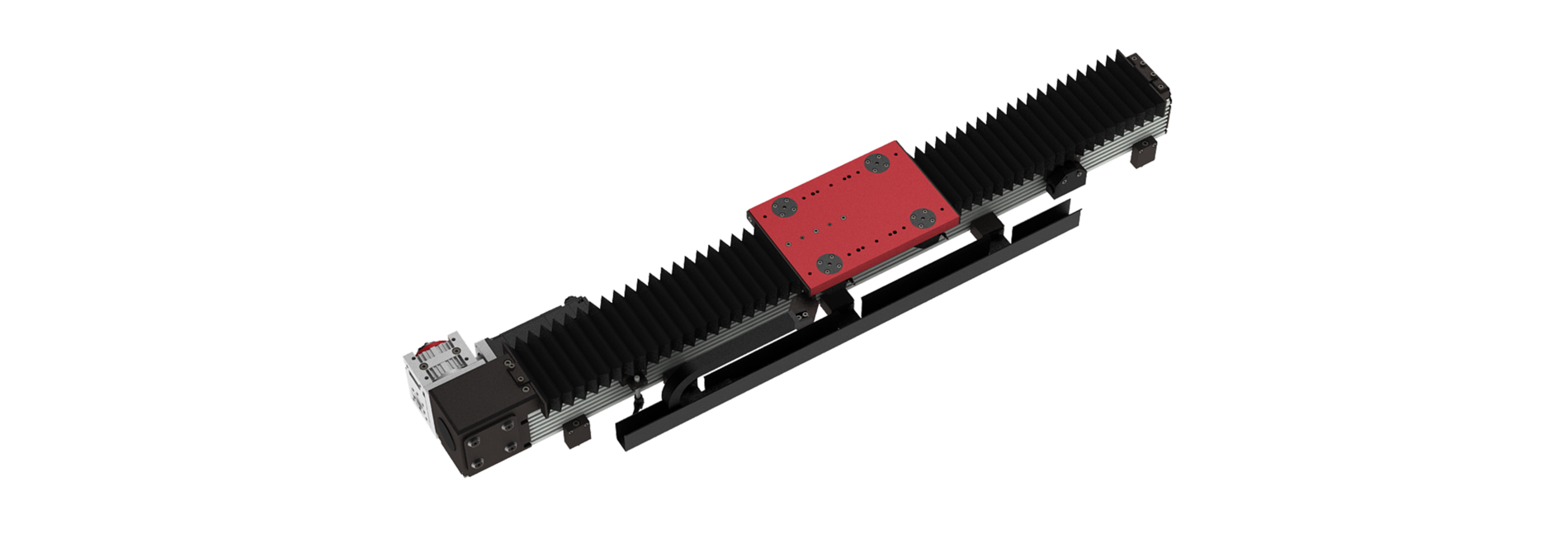

Modular linear axis MLB with belt drives are specially suited for general handling applications for packaging and logistics, as well as for the food and medical industry. MLBs by Güdel are characterized by highly dynamic and low-noise linear guidance systems built on an aluminium profile. They are very compact with an integrated drive unit as well as being rigid with high precision. Linear axes are available in lengths up to 6000 mm.

The stationary drive unit and motor reduce the moving mass to a minimum and in many cases make complex power transmission with chains unnecessary. The functions: guidance, drive and positioning are combined in a single unit which makes it easy to integrate into a complete system and make it possible to mount in any position.



View robotics catalog

1-Axis: Type MLB

Mounting orientation

The Güdel gearbox can be mounted in 8 positions



Fig. 5: Gearbox right (Standard)

Fig. 6: Gearbox left

Fig. 7: Gearbox 4x90° rotated * Standard configuration



The MLB module can be mounted in 3 different positions



Fig. 2: Mounting orientation horizontal Normal A (Standard)


Fig. 2: Mounting orientation horizontal Normal A (Standard)


Fig. 3: Mounting orientation horizontal 90° rotated B


Fig. 4: Mounting orientation vertical C

Downloads

Product Type Language Payload (N) Download
MLB-1 Data sheet English 250 pdf
MLB-1 Data sheet German 250 pdf

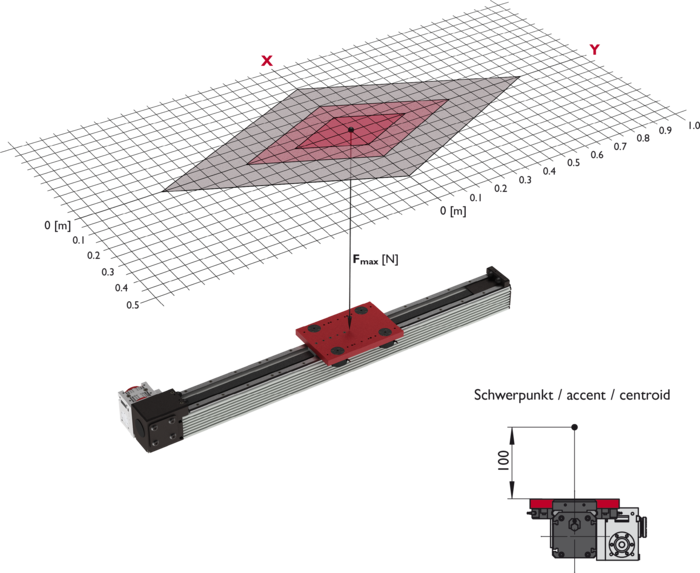

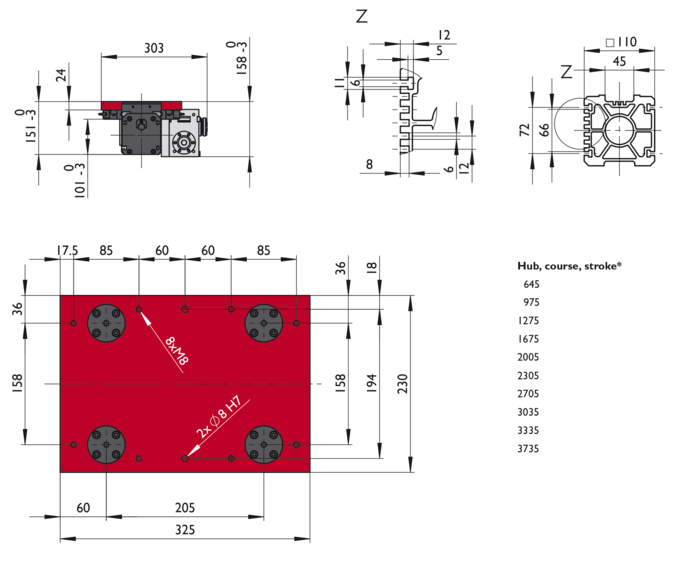

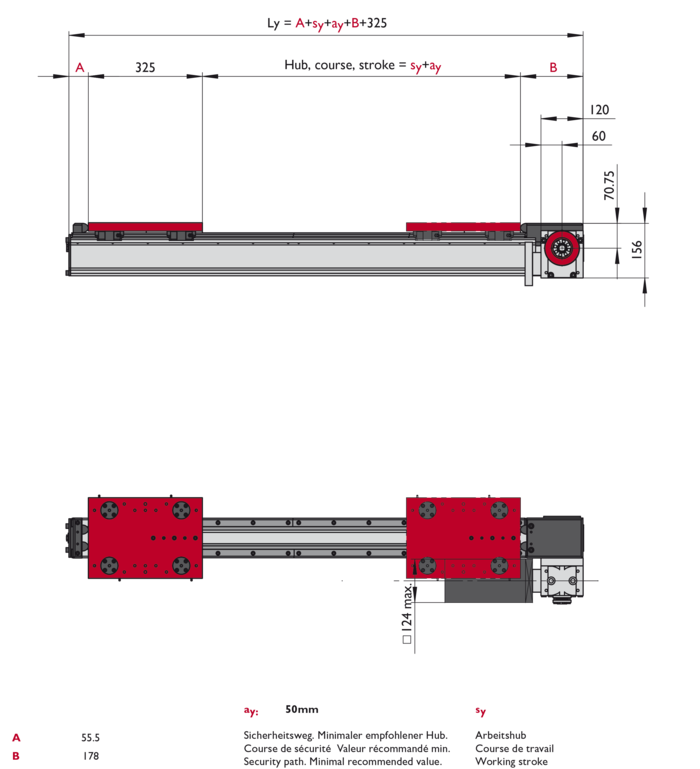

MLB-2 Data sheet English 630 pdf
MLB-2 Data sheet German 630 pdf

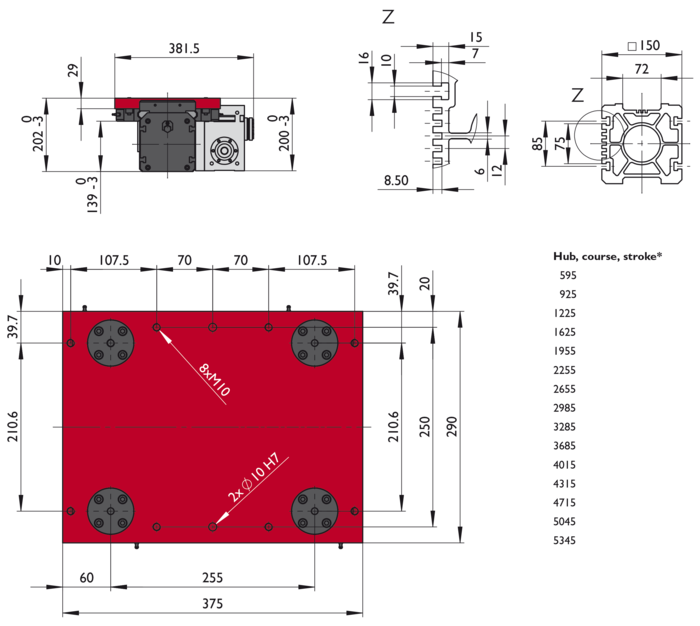

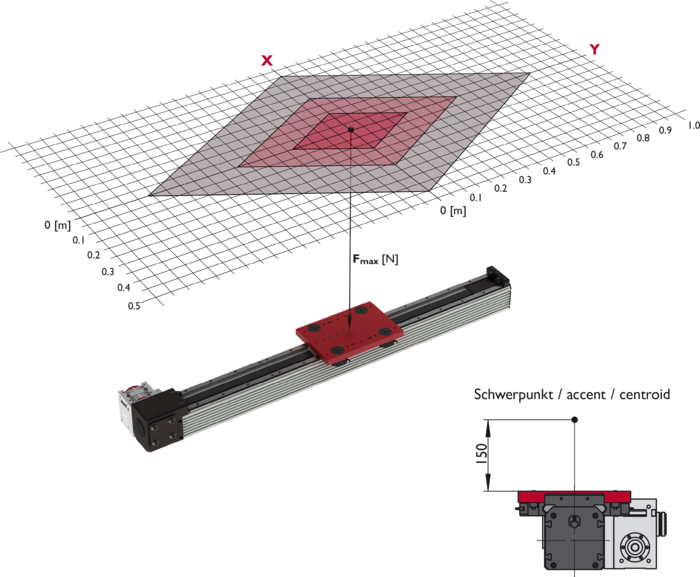

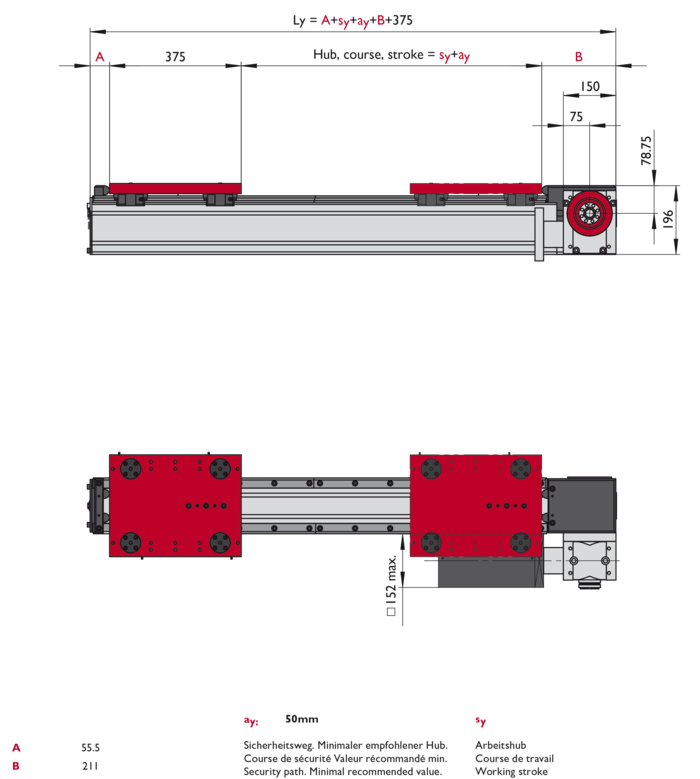

MLB-3 Data sheet English 1000 pdf
MLB-3 Data sheet German 1000 pdf
MLB-1 CAD models English 250 zip
MLB-1 CAD models German 250 zip
MLB-2 CAD models English 630 zip
MLB-2 CAD models German 630 zip
MLB-3 CAD models English 1000 zip
MLB-3 CAD models German 1000 zip
