3-axis gantry FP-5-HP

High performance gantry for various applications

With the new high performance gantry, maximum stroke of 14 m for the Y-Axis is now possible. High dynamics of the new gantry will help to improve the overall cycle time of the system by speeding up the process. FP-5-HP area gantry is especially suited to applications where large work areas must be covered with a highest possible dynamics. The load of up to 1100 kg could be mounted on the Y-Carriage, while in case of gantry with Z-Axis effective high dynamic payload of up to 500 kg is achievable.

What are you looking for?

Customer values

Technical excellence

Enlarge the working area with new high-performance gantry with a 14 m stroke for bridge (gantry span), now as standard.

High efficiency

Improve project efficiency by accelerating the planning phase as our new standardized gantry requires less planning and efforts.

Machine availability

Enhance your performance and uptime with new gantry, designed by our experts based on several years of experience to meet many complex design requirements.

Impressive features

  • Y-Axis with maximum 14 m stroke and that too with high dynamics
  • Light weight and compact design, yet robust to handle heavy loads
  • Specially designed modular gantry with ease of installation and minimum maintenance
  • Y-Carriage, gantry interface, designed to be compatible with different grippers and Z-Axis
  • The anchoring system requires only 220 mm of concrete thickness

APPLICATIONS

Pick and place

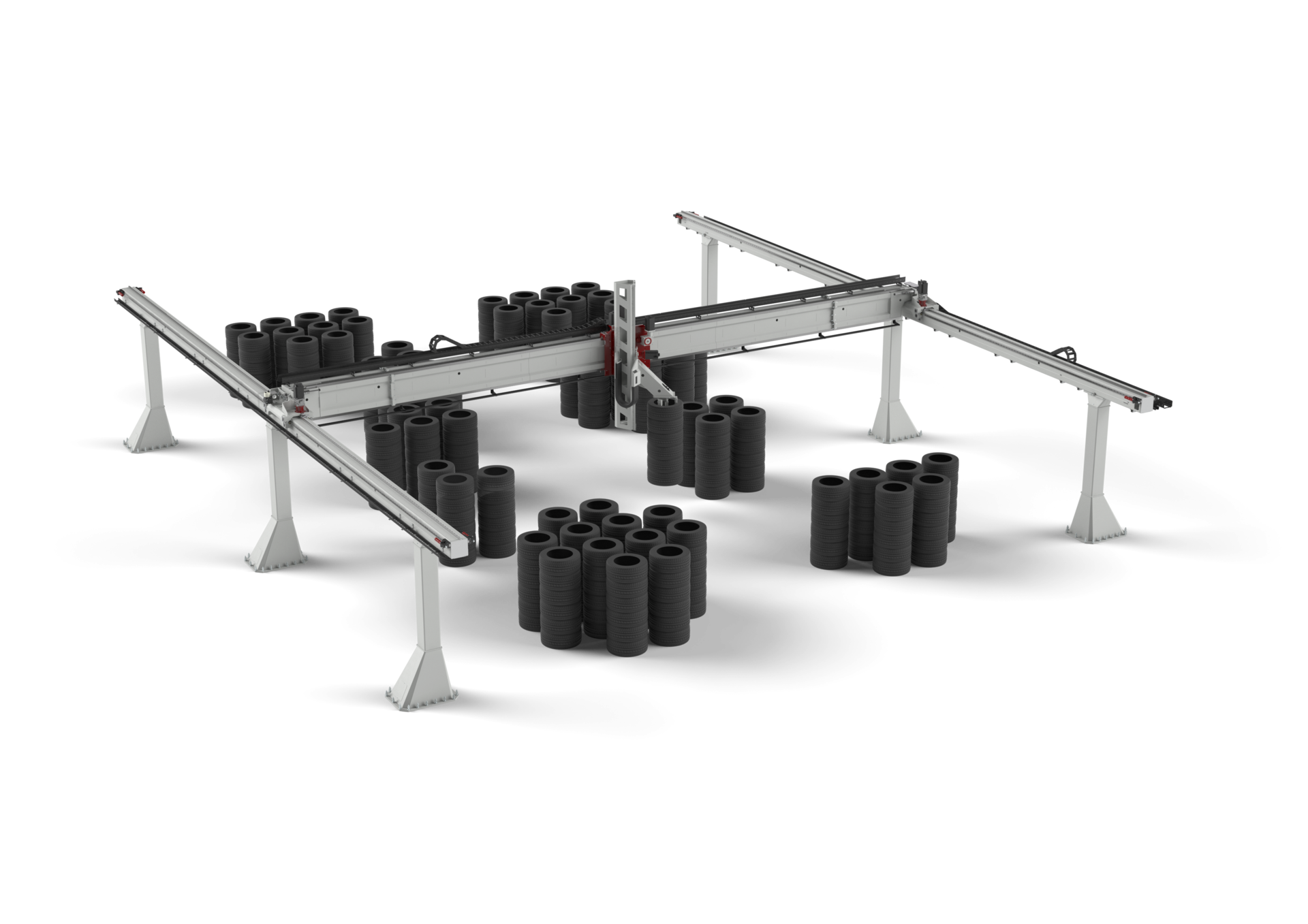

Tire/Wheel handling

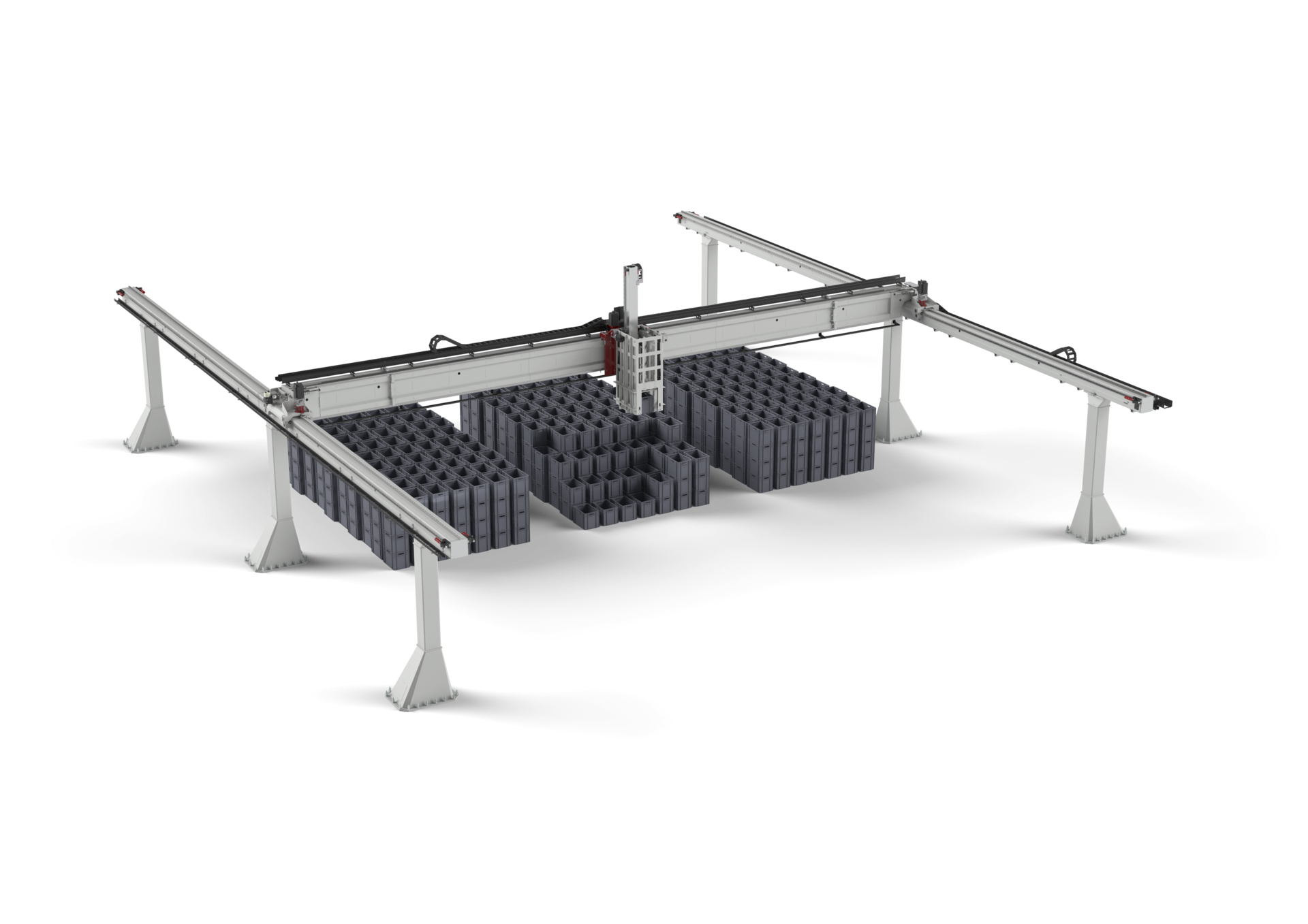

Crates handling

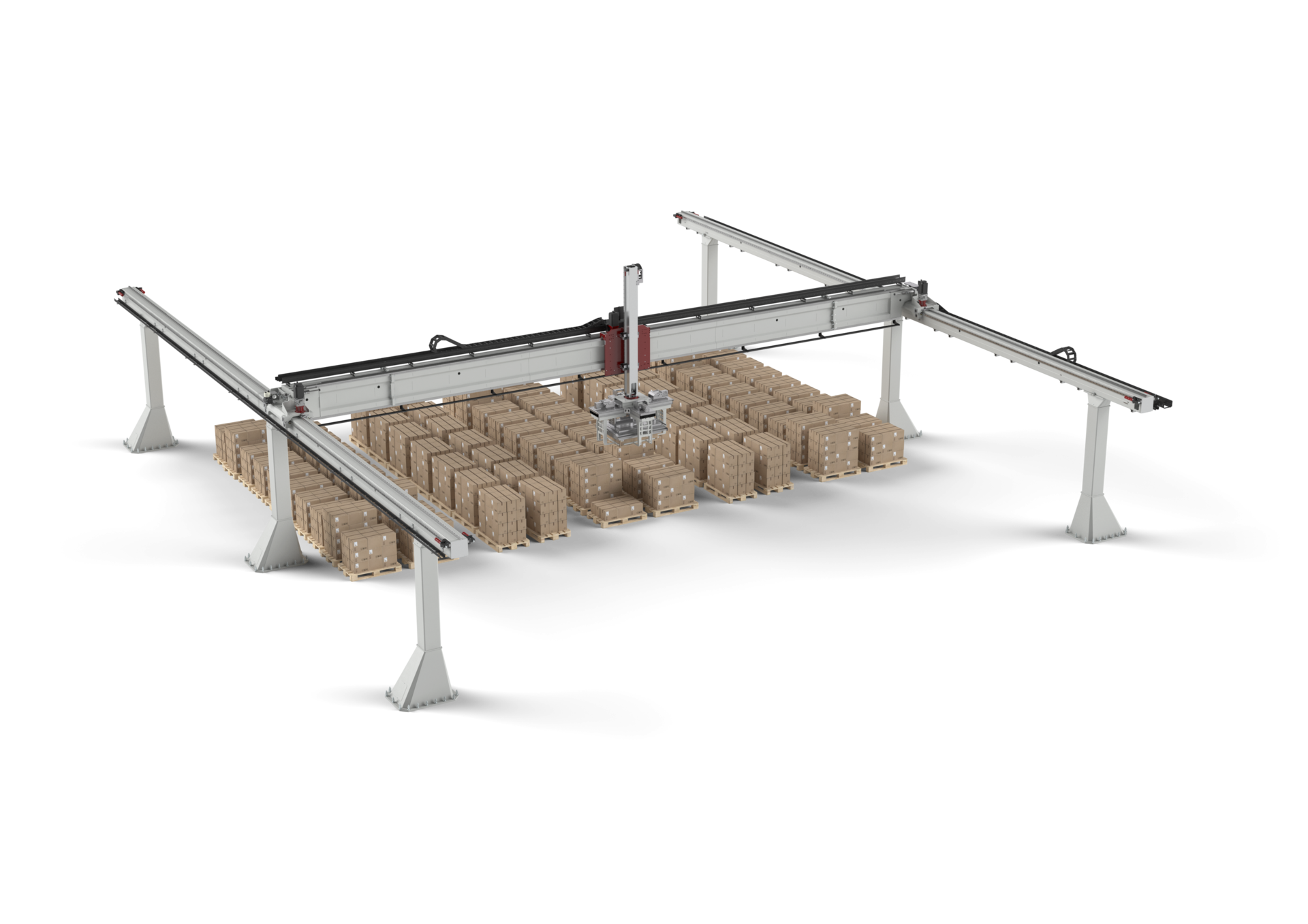

Layer picking

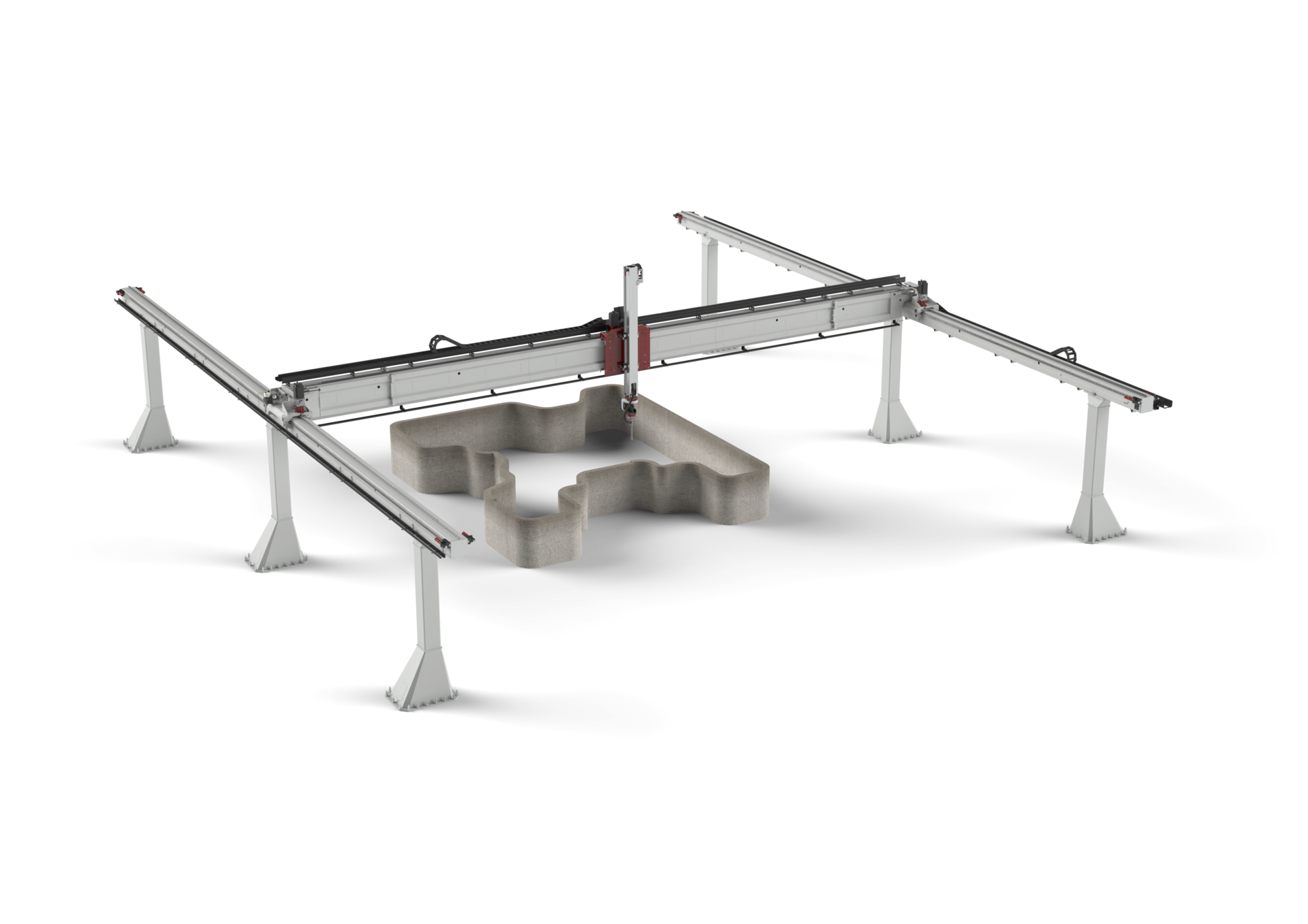

Process application

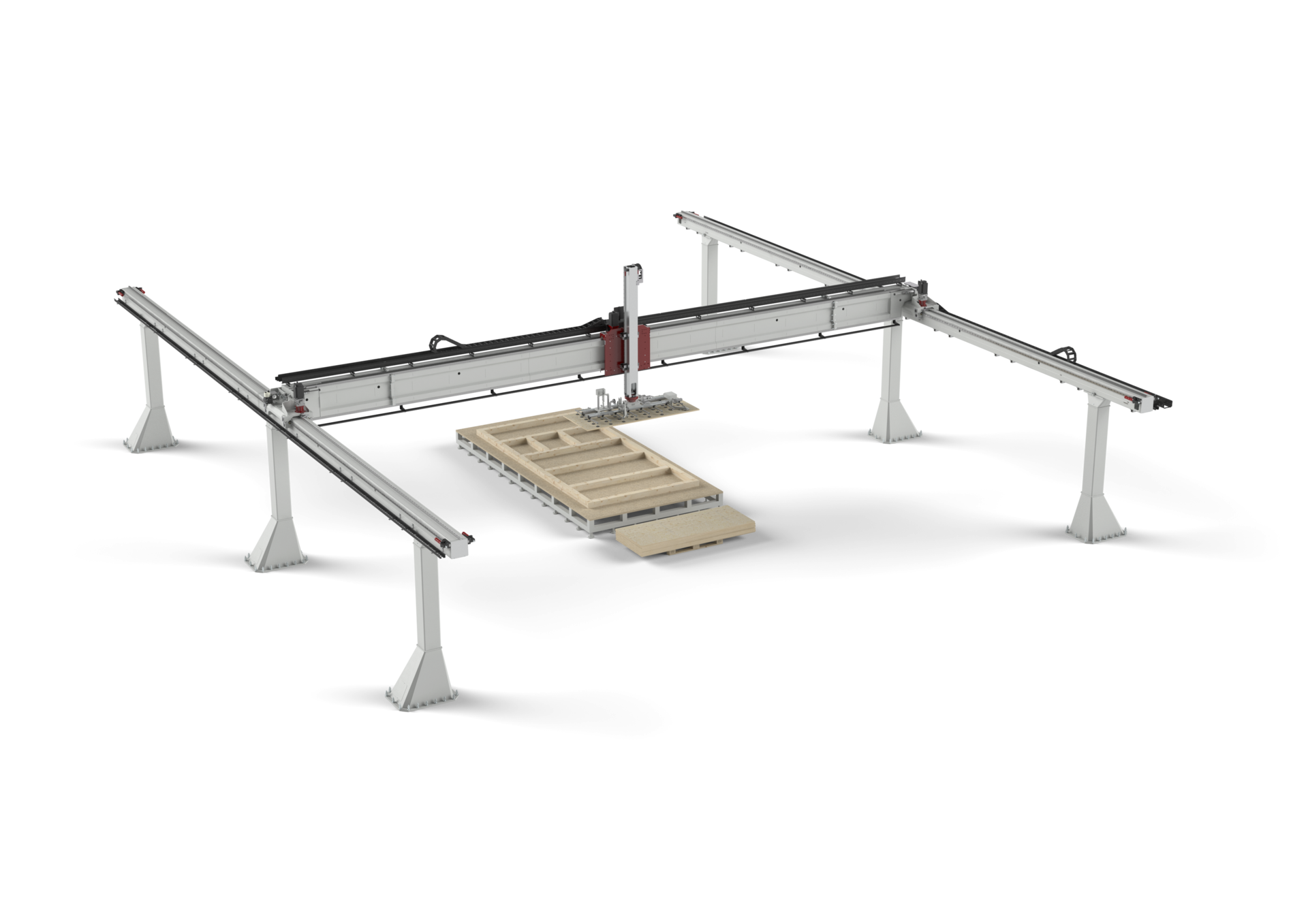

Wooden components

downloads

Product Type Language Payload (N) Download
FP-5-HP Catalog English 5000 pdf
FP-5-HP Catalog German 5000 pdf
FP-5-HP Catalog German 5000 pdf
FP-5-HP – Best combination of longest stroke, high dynamics and heavy payload Data sheet English 5000 pdf
FP-5-HP – Best combination of longest stroke, high dynamics and heavy payload Data sheet German 5000 pdf
FP-5-HP – Best combination of longest stroke, high dynamics and heavy payload Data sheet German 5000 pdf
FP-5-HP – High performance gantry for various applications Brochure English 5000 pdf
FP-5-HP – High performance gantry for various applications Brochure German 5000 pdf
FP-5-HP – High performance gantry for various applications Brochure German 5000 pdf
