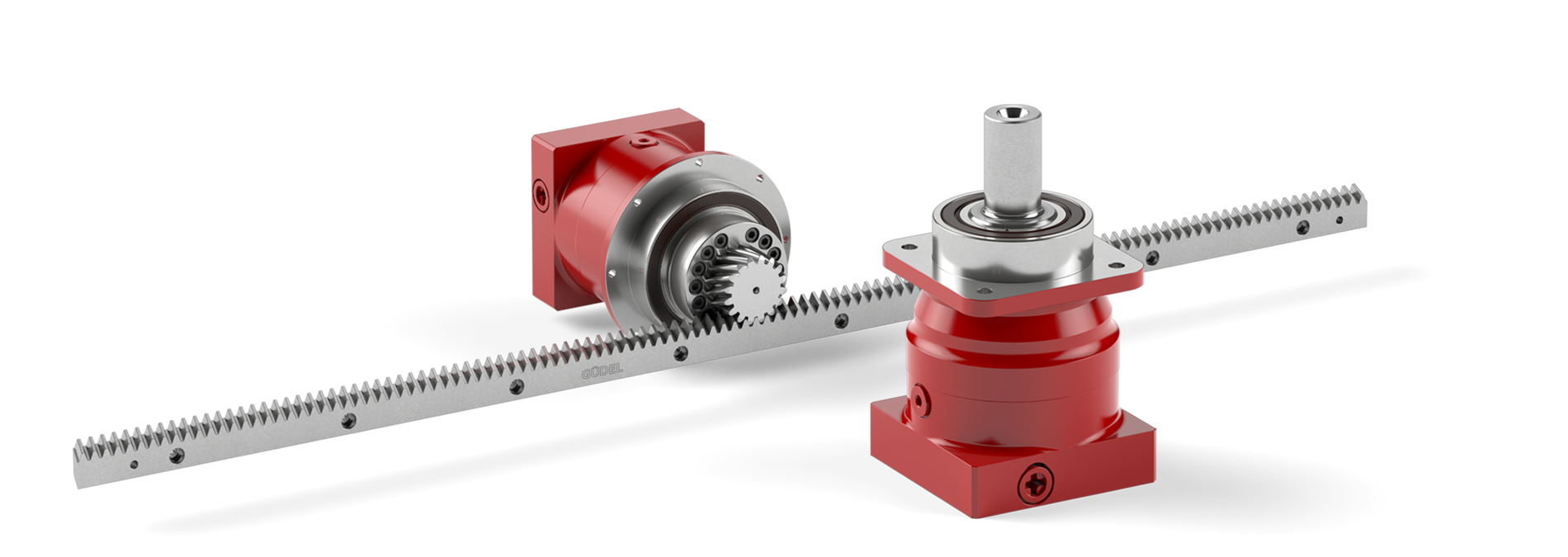

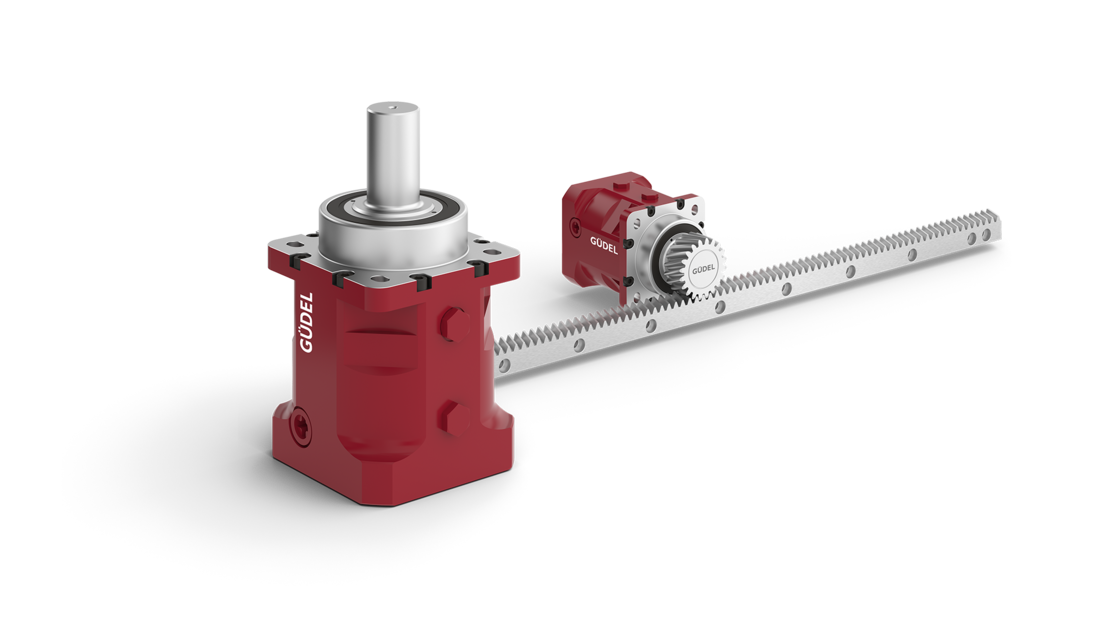

High Precision Planetary Gearboxes

Unlimited flexibility

Due to their outstanding properties, planetary gearboxes are used in all kind of industrial applications. Güdel high precision planetary gearboxes ideally cover demanding requirements – details are presented on the technical information pages in our catalog.



Take SIX – The Product at a glance

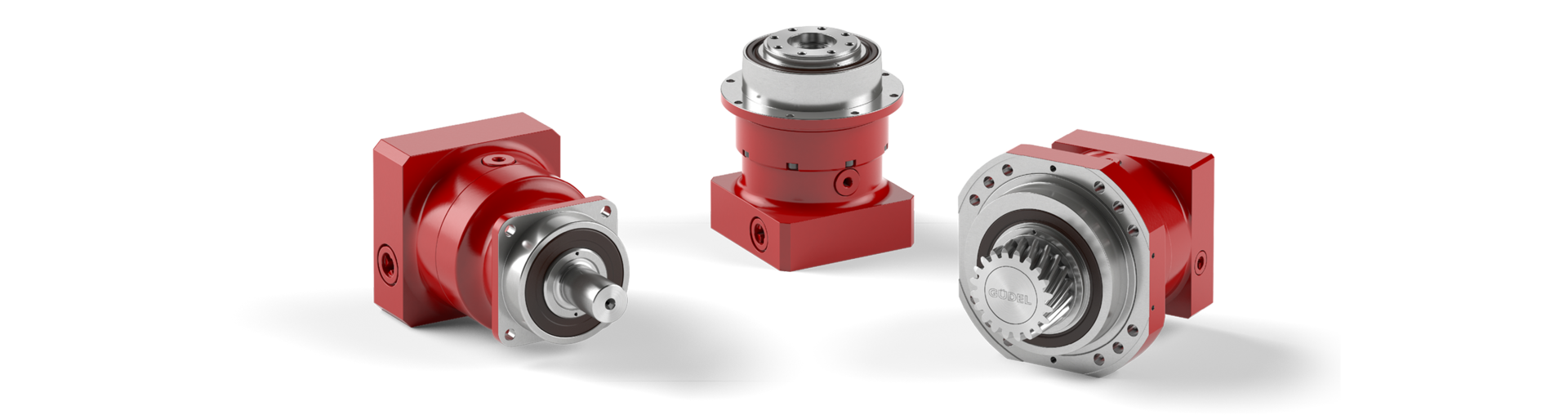

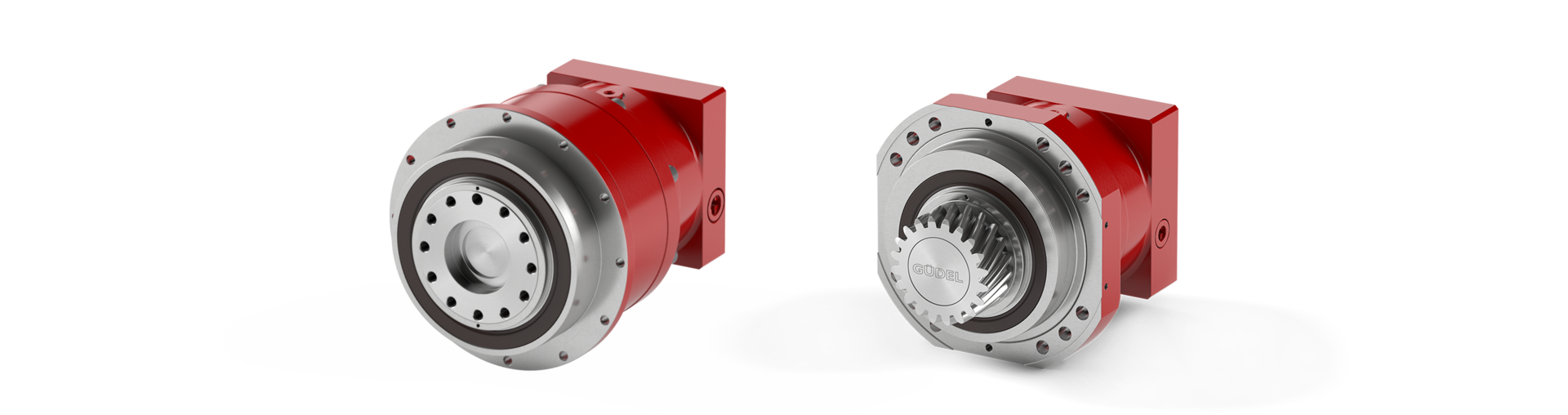

NRH, NRHP und NGHP

Planetary gear with optimized helical toothing | © Güdel Group AG

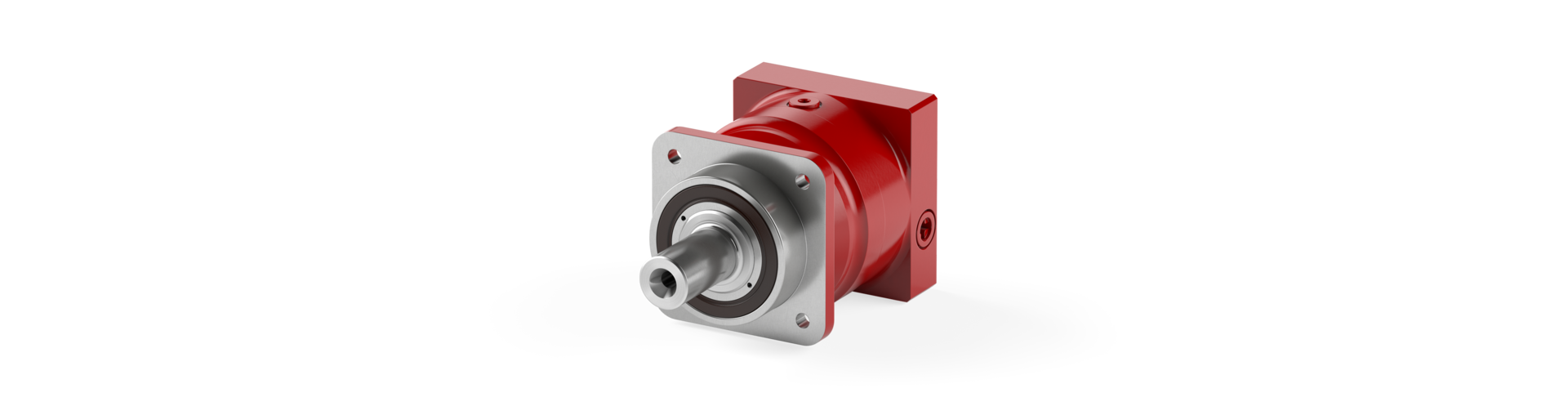

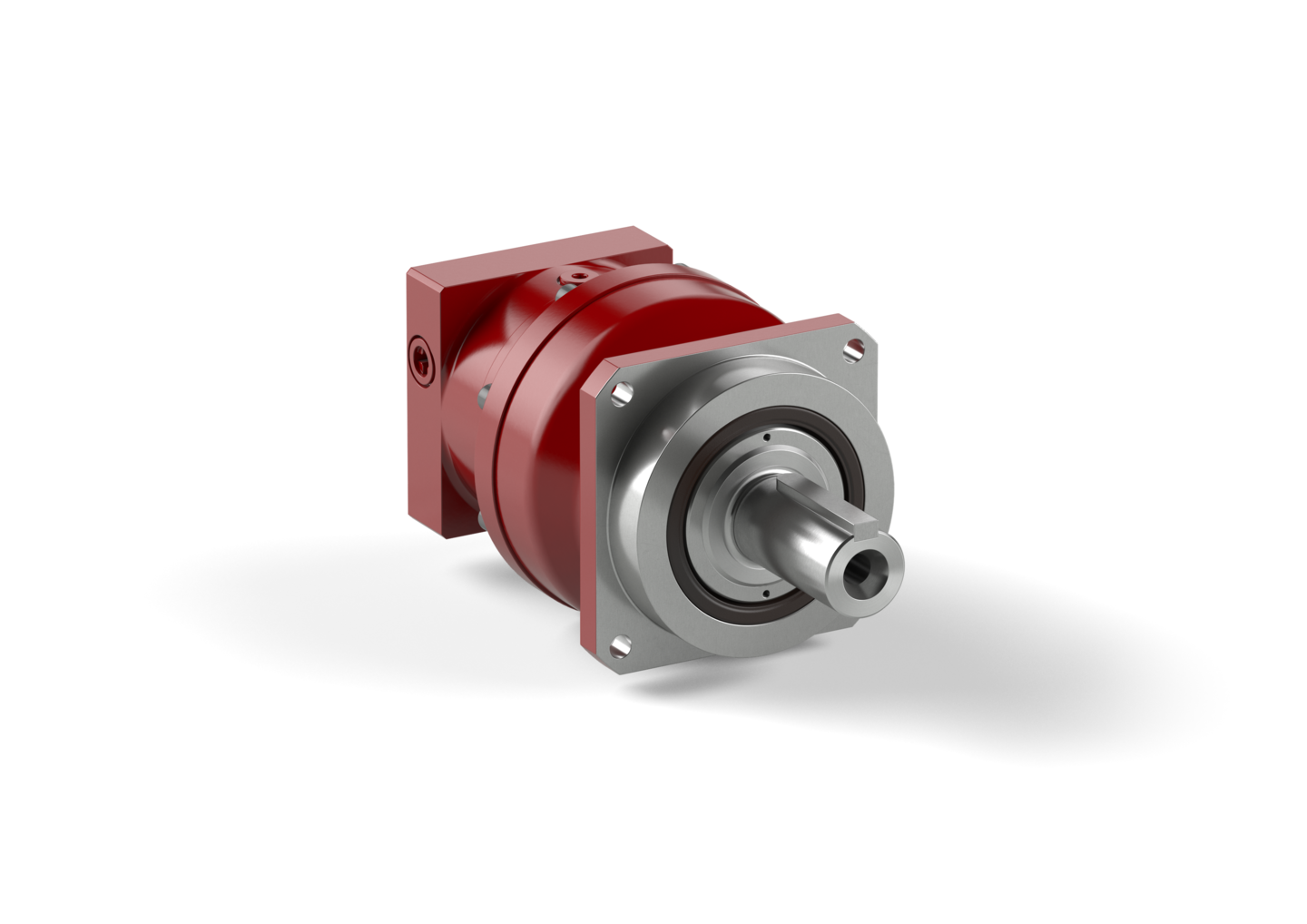

NRH Type – for High Precision

The NRH planetary gearbox with optimized helical gearset teeth was developed for highly demanding applications. These gearbox is perfect for applications ranging from basic machinedesign to printing, packaging, and robotics. Designed for high speed and acceleration– and for perfect production flows.

More

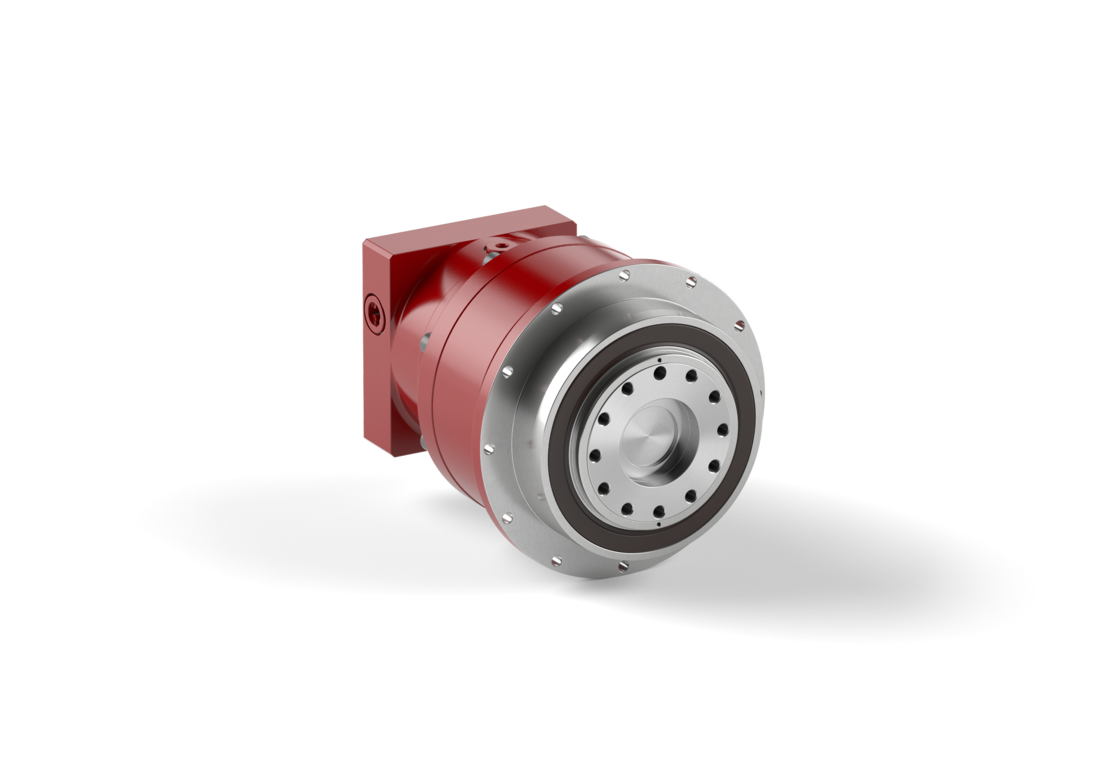

NRHP Type – for High Stiffness

The NRHP flange mount planetary gearbox offer superior torsional stiffness and tilt rigidity, perfectly suited for high precision processes and production flows.

More

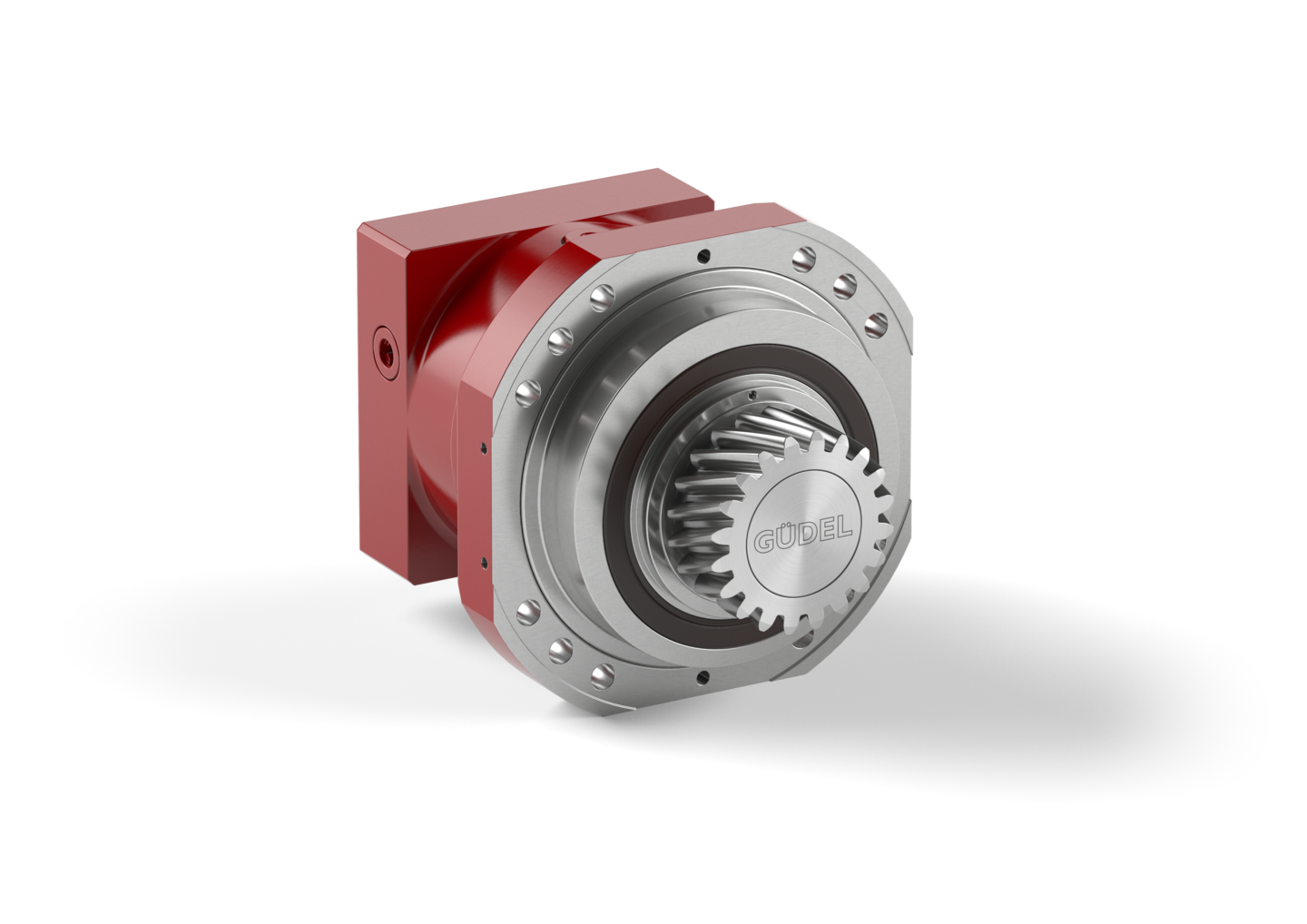

NGHP type – For smart adjustment

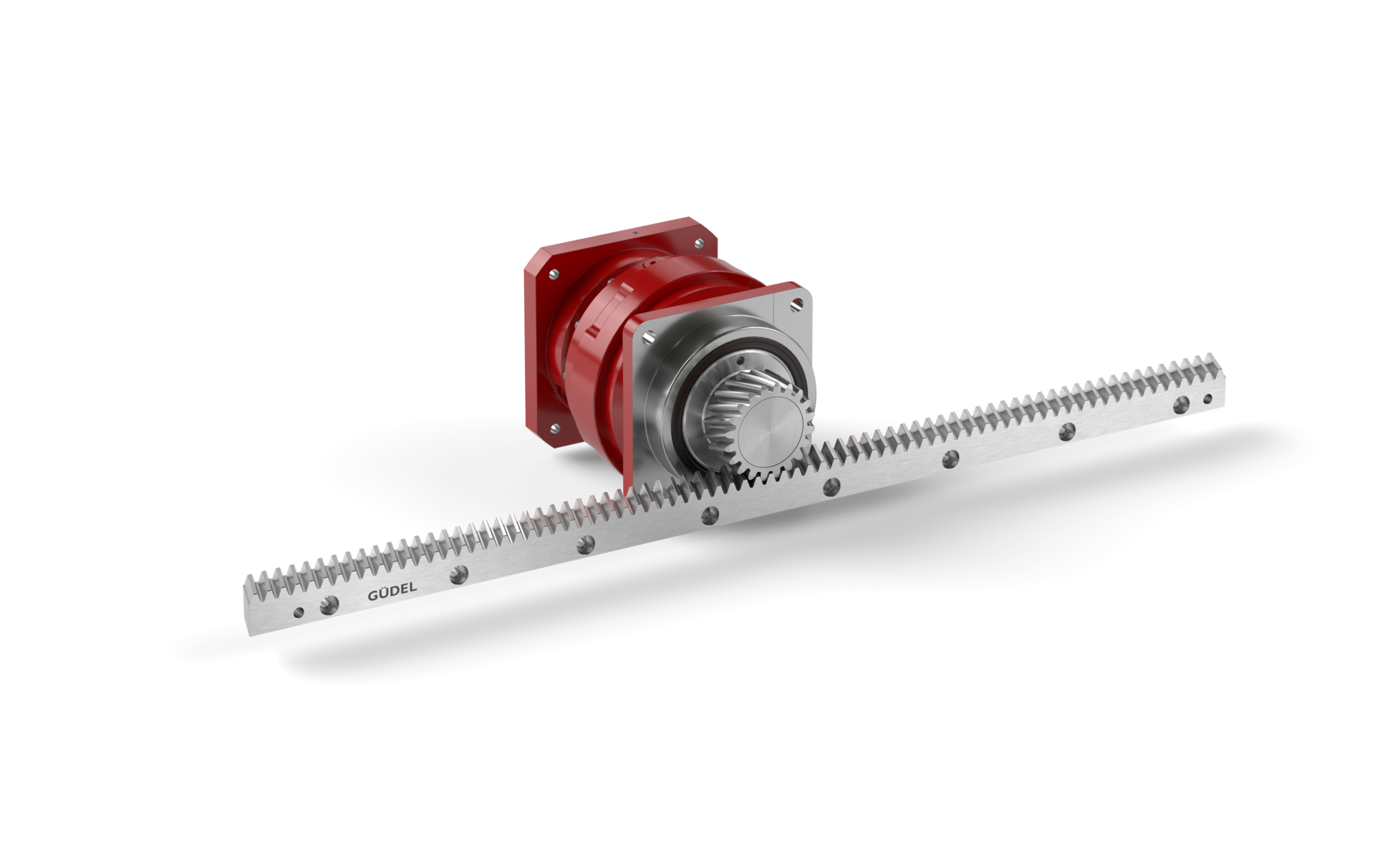

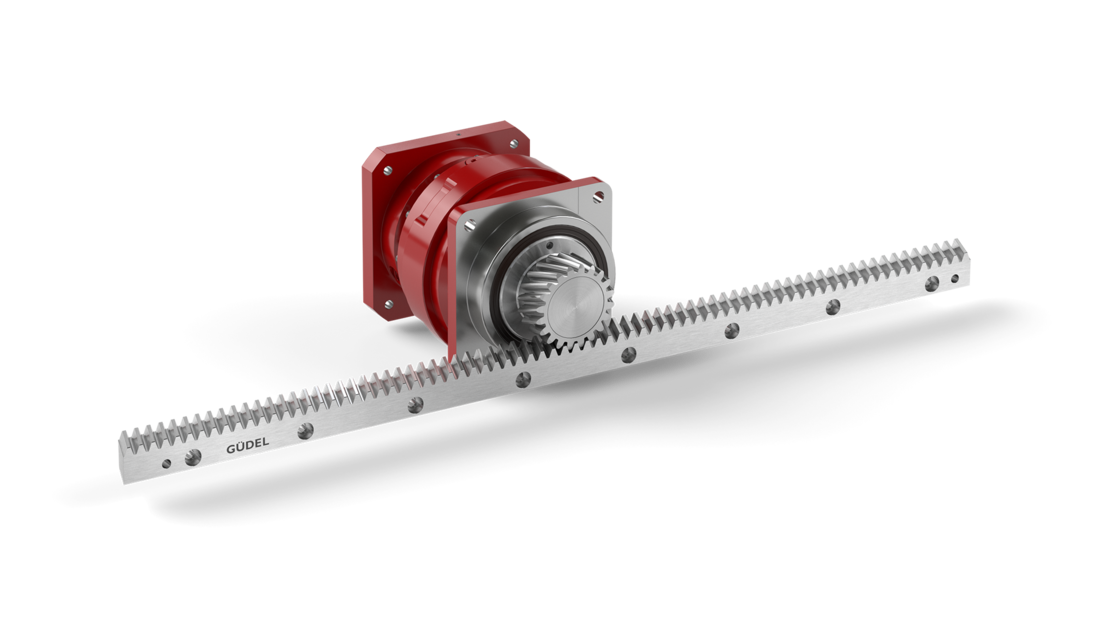

The planetary gearbox NGHP is built onthe proven technology of the Güdel NRHP series planetary gearboxes. The unique interface, together with the web application GAdjuster guarantees a precise, simple, and error free gear mesh adjustment for rack and pinion drive train.

More

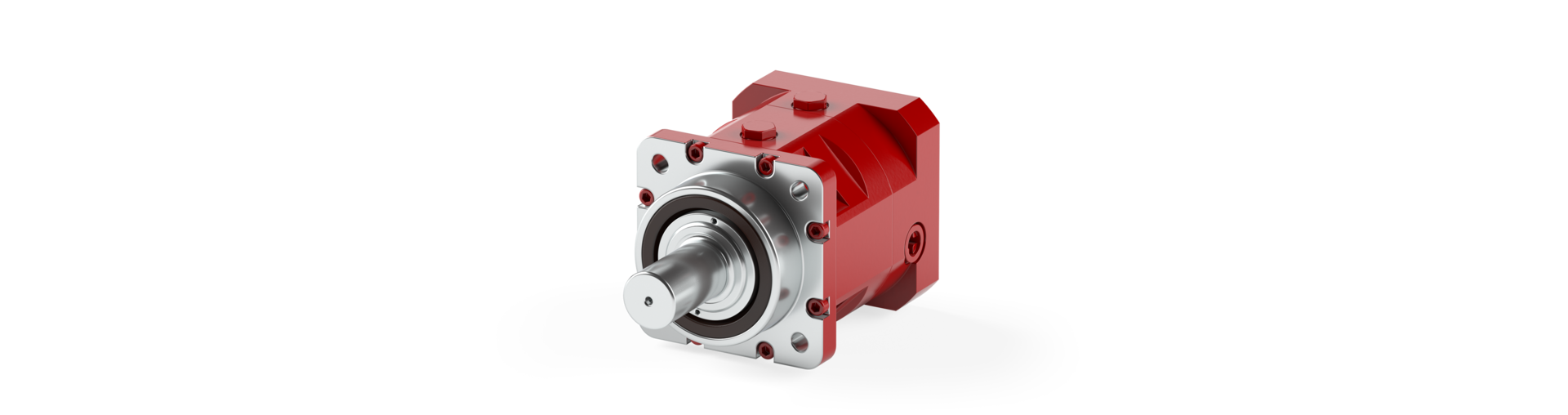

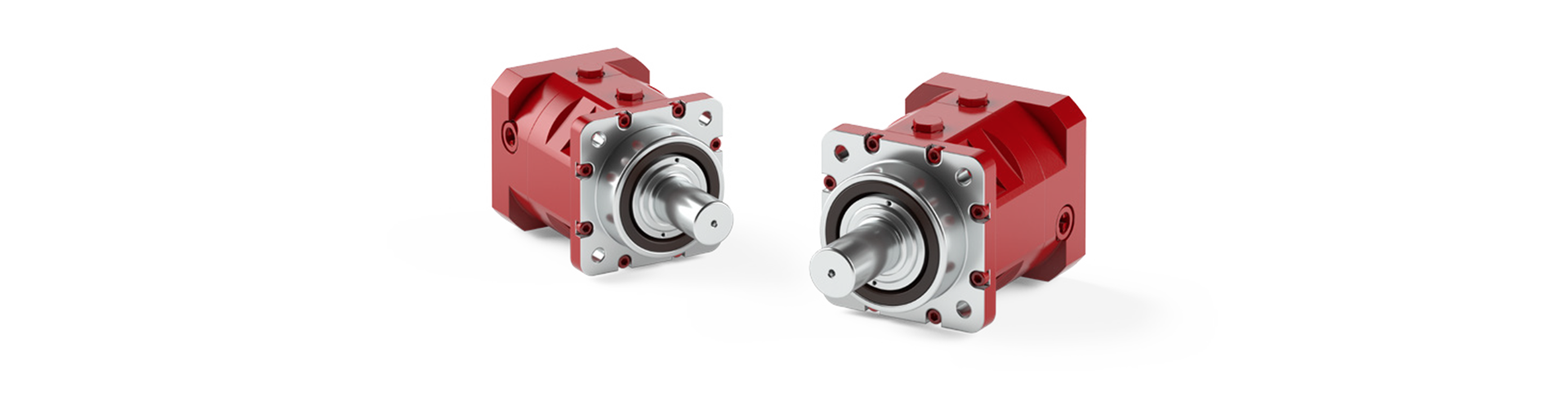

NR, SR and PR

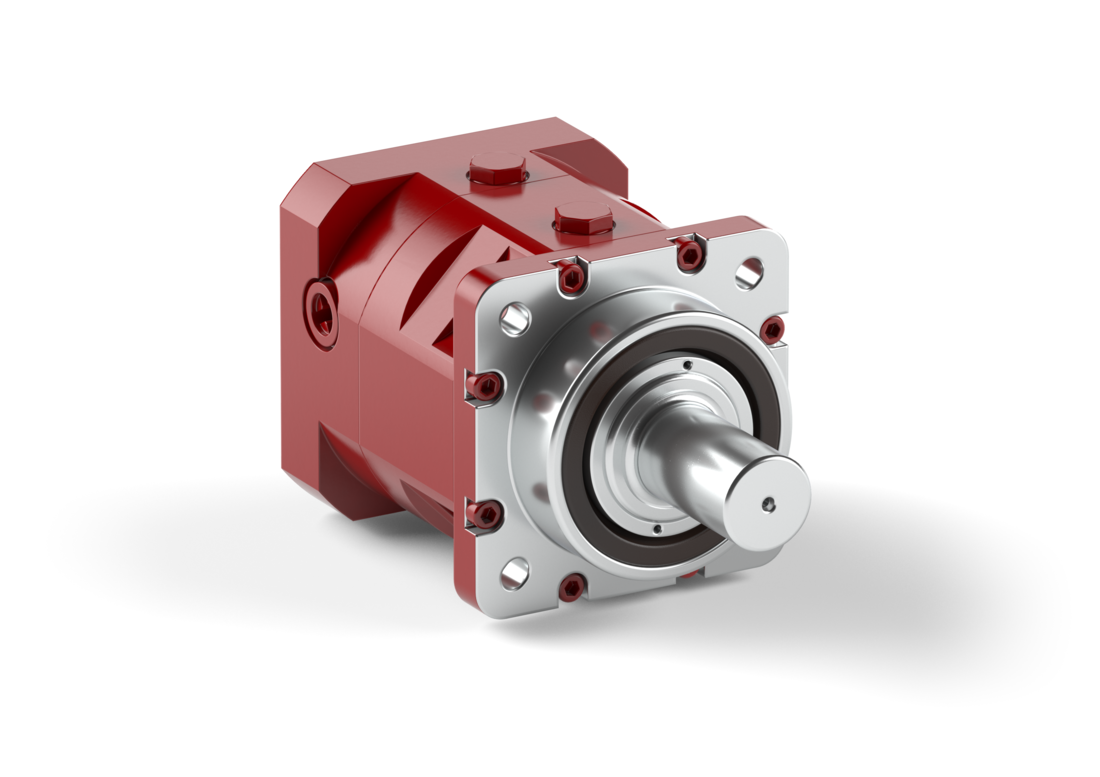

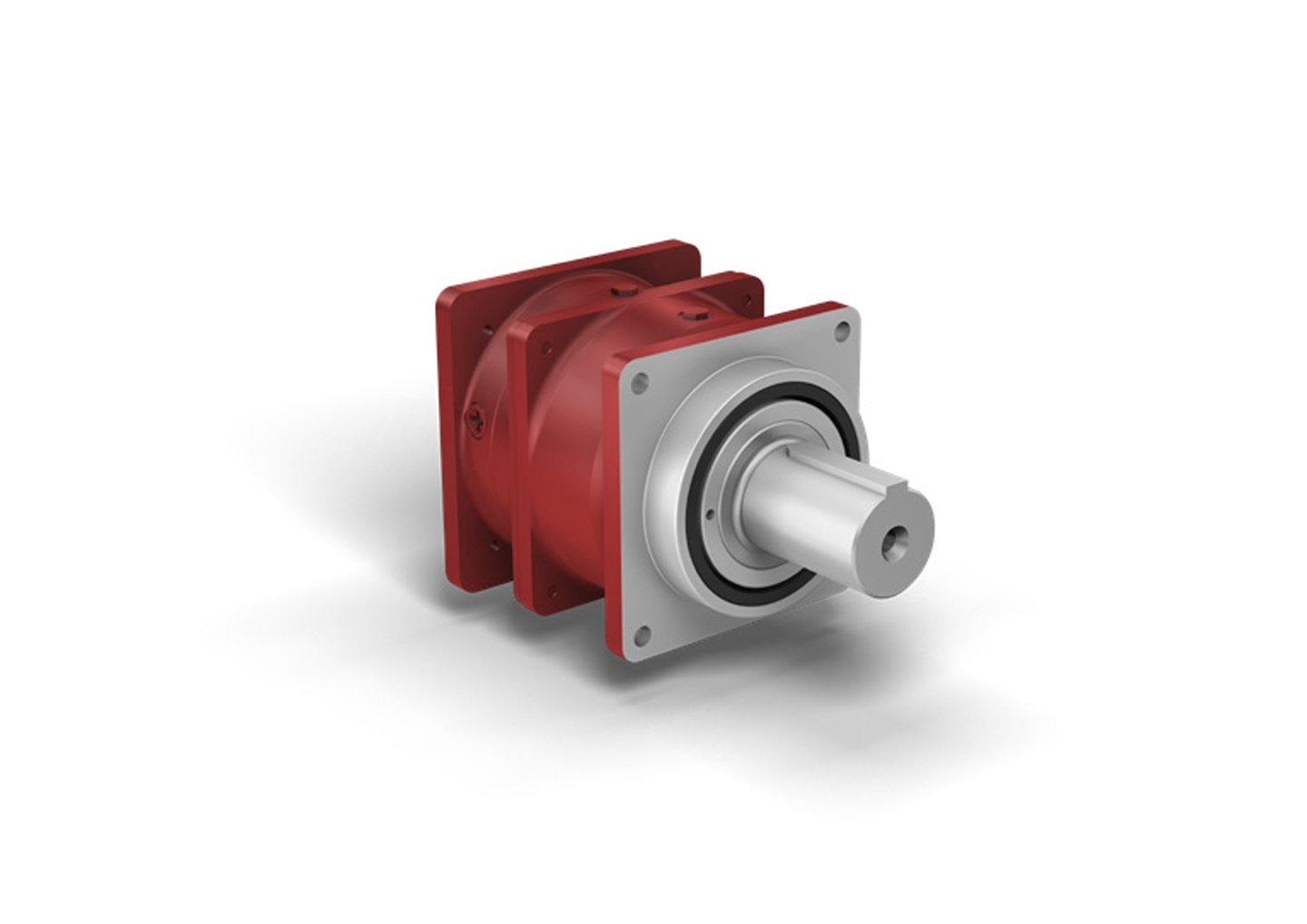

NR Type – for High Flexibility

For use in most applications that require torque, precision and high speed operation in continuous S1 and discontinuous S5 duty cycles.

More

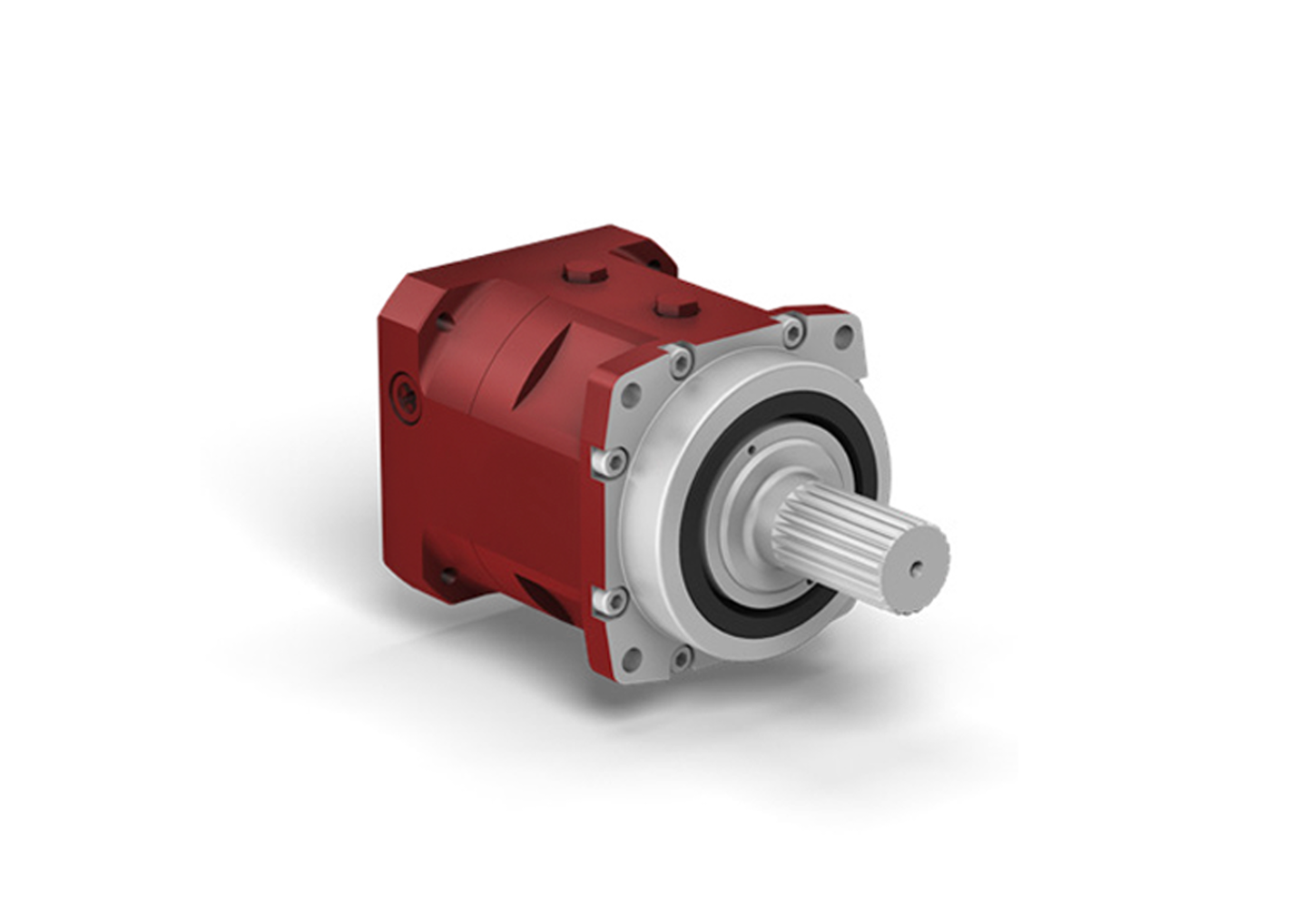

SR Type – for High Torque

Without an increase in size, the SR range provides 33% more torque than the NR range and is used in discontinuous duty cycles of up to S5 and more.

More

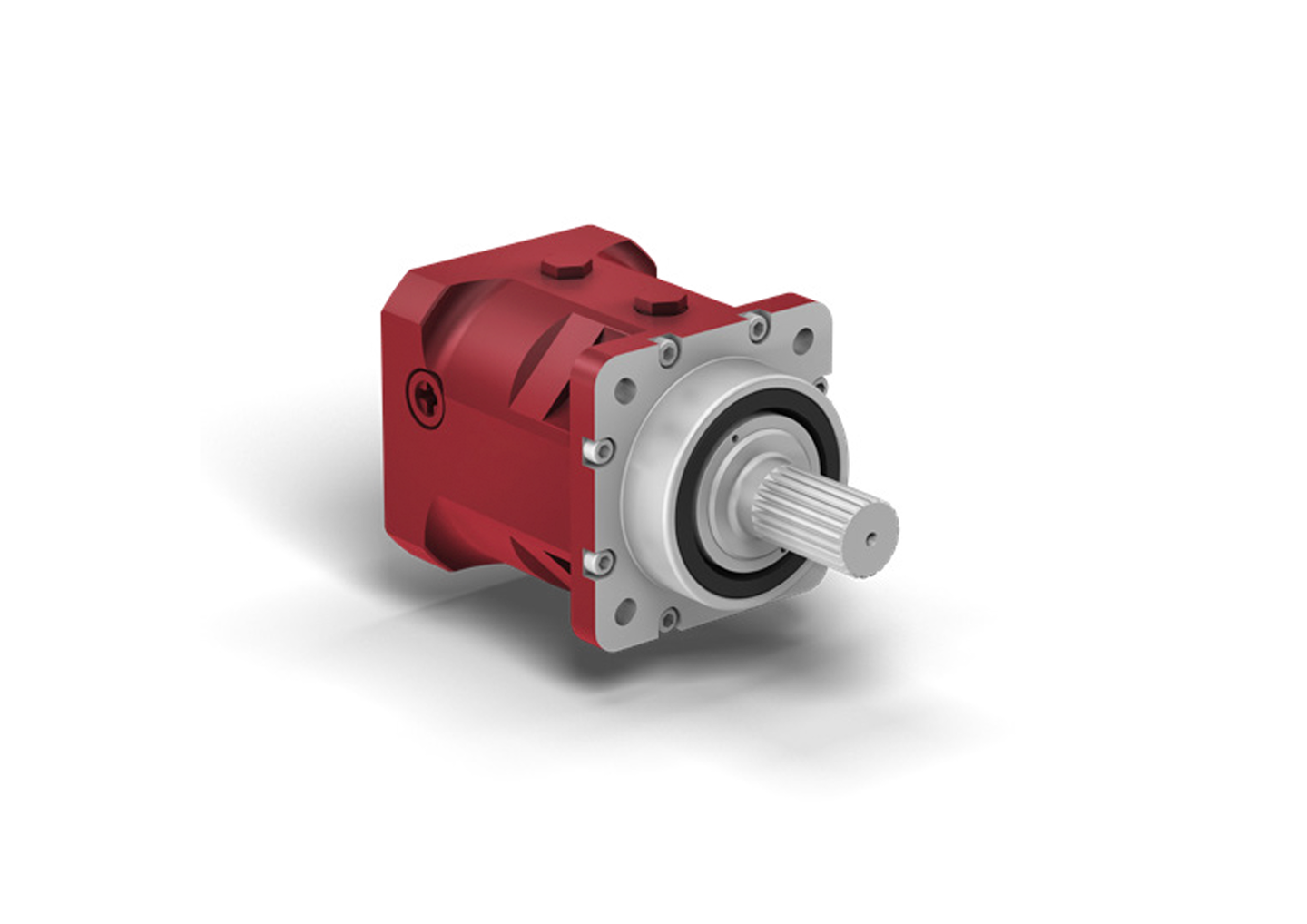

PR Type – for Hyper Torque

Without an increase in size, the PR range operates with 100% more torque than the NR and is used in discontinuous duty cycles of up to S5.

More

NRH Type – for High Precission

Technical data

Sizes   080, 100, 140
Nominal output torque S5 T2N [Nm] Up to 500
Acceleration torque S5 T2B [Nm] Up to 650
Ratios i From to 3 to 100
Backlash Jt [arcmin] 1 ; 3 ; 5
Rigidity (Stiffness)   ••
Input Speed   •••
Adaptability   •••
Noise   •••
Duty cycle S5 60%
  S1 100%





NRHP and NGHP Type – for High Stiffness

Technical data

Sizes   080, 100, 140
Nominal output torque S5 T2N [Nm] Up to 500
Acceleration torque S5 T2B [Nm] Up to 650
Ratios i From to 3 to 100
Backlash Jt [arcmin] 1 ; 3 ; 5
Rigidity (Stiffness)   •••
Input Speed   •••
Adaptability
Noise   •••
Duty cycle S5 60%
  S1 100%





NR, SR, PR Family

Technical data

    NR Type – for High Modularity SR Type – for High Torque PR Type – for Hyper Torque
Sizes     080, 100, 140, 180, 240
Nominal output torque S5 T2N [Nm] Up to 2700 Up to 3600 Up to 4400
Acceleration torque S5 T2B [Nm] Up to 3800 Up to 4800 Up to 5600
Ratios i 3 - 1000 4 - 400 3 - 300
Backlash Jt [arcmin]   1 ; 3 ; 5 ; 12
Rigidity (Stiffness)   ••
Input Speed   ••• ••
Adaptability   ••• ••• •••
Noise   ••
Duty cycle S5 60% 60% 60%
  S1 100% - -
